Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

G301

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › G301
ElectricalG301 · page 1 of 3

G301 – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

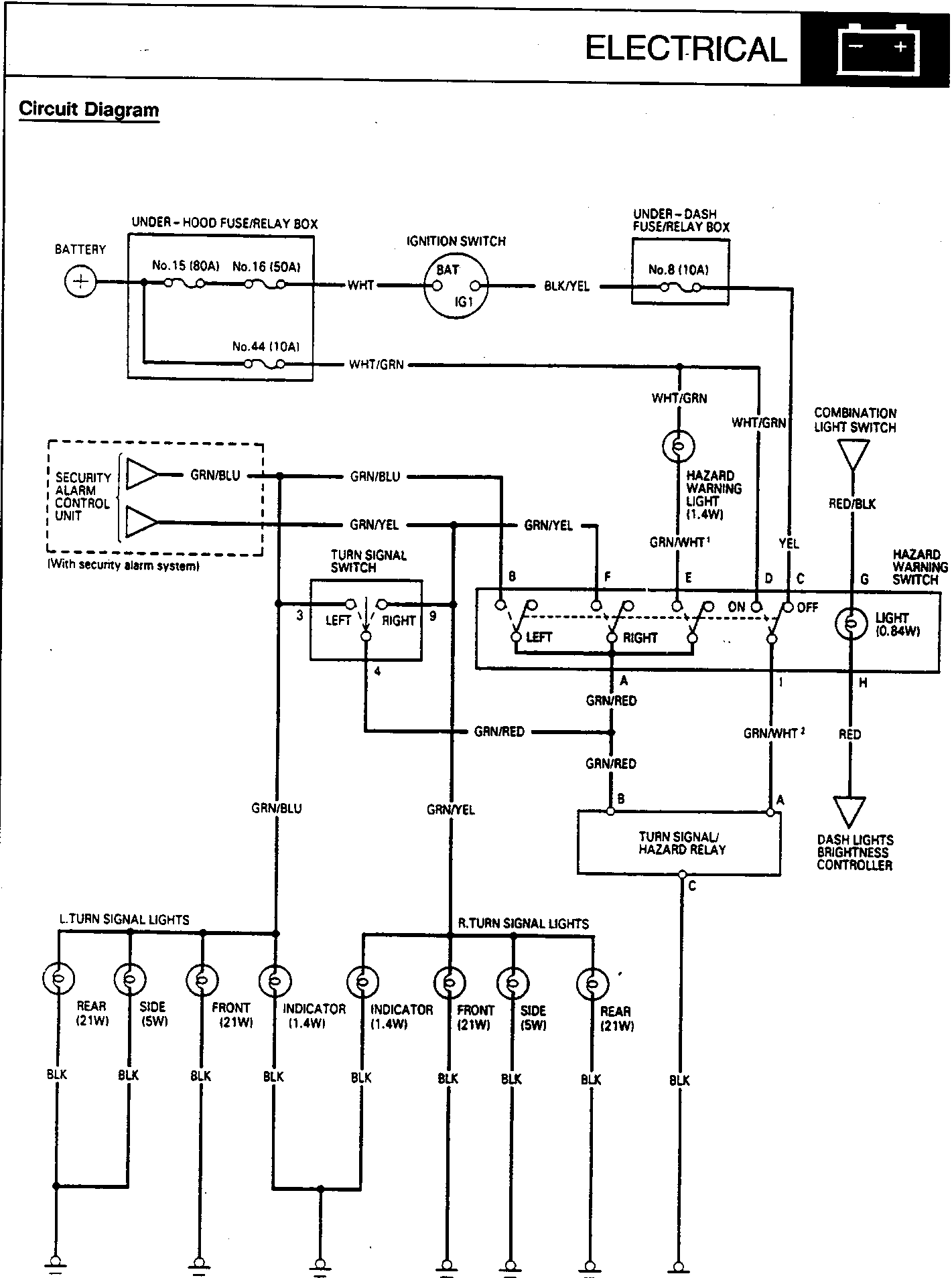

Electrical circuit diagram showing connections between battery, fuses, ignition switch, security alarm control unit, turn signal switch, combination light switch, hazard warning switch, turn signal/hazard relay, and various signal lights with wire color codes and ground points.

LHD : G501
RHD : G451

G301

G401

G201

LHD : G452
RHD : G501

LHD : G452
RHD : G701

G401

86M 2201
