ElectricalLights – on Reminder System

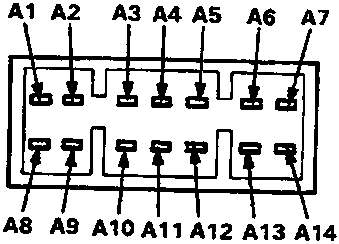

A View from terminal side B View from wire side

Lights – on Reminder System

No.	Terminal	Test condition	Test: Desired result	Possible cause if result is not obtained
1	A8	Under all conditions	Check for continuity to earth: There should be continuity.	● Poor earth (G401) ● An open in the wire
2	A13	Headlight switch ON	Check for voltage to earth: There should be battery voltage.	● Blown No. 19 (30A) fuse in the engine compartment fuse/relay box ● Blown *No. 13 fuse in the auxiliary fuse holder (except KS) ● Faulty combination light switch ● An open in the wire
3	A2	Ignition switch ON	Check for voltage to earth: There should be battery voltage.	● Blown No. *13 (10A) fuse in the passenger compartment fuse/relay box ● An open in the wire
4	A1	Driver's door open	Check for voltage to earth: There should be 1V or less Note: Use a digital multimeter.	● Faulty driver's door switch ● An open in the wire

*No. 13 (10A): KF, KG No. 13 (15A): KE

Wiper/Washer System

No.	Terminal	Test condition	Test: Desired result	Possible cause if result is not obtained
1	A8	Under all conditions	Check for continuity to earth: There should be continuity.	● Poor earth (G401) ● An open in the wire
2	A11	Ignition switch ON	Check for voltage to earth: There should be battery voltage.	● Blown No. 6 (30A) fuse in the passenger compartment fuse/relay box ● Faulty wiper intermittent relay ● An open in the wire
3	A3	Ignition switch on and wiper switch in "INT" position	Check for voltage to earth: There should be battery voltage.	● Blown No. 6 (30A) fuse in the passenger compartment fuse/relay box ● Faulty wiper switch ● An open in the wire
4	A4	Ignition switch ON and washer switch ON	Check for voltage to earth: There should be battery voltage	● Blown No. 6 (30A) fuse in the passenger compartment fuse/relay box ● Faulty washer switch ● An open in the wire
5	A9	Ignition switch ON	Check for voltage to earth: There should be battery voltage	● Blown No. 6 (30A) fuse in the passenger compartment fuse/relay box ● Faulty wiper intermittent relay ● Faulty windscreen wiper motor ● An open in the wire
6	A10	Ignition switch ON	Check for voltage to earth: There should be battery voltage.	● Blown No. 6 (30A) fuse in the passenger compartment fuse/relay box ● An open in the wire

18 Electrical
