ElectricalComponent Location

Component Location

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM

Note: LHD type is shown, RHD type is symmetrical.

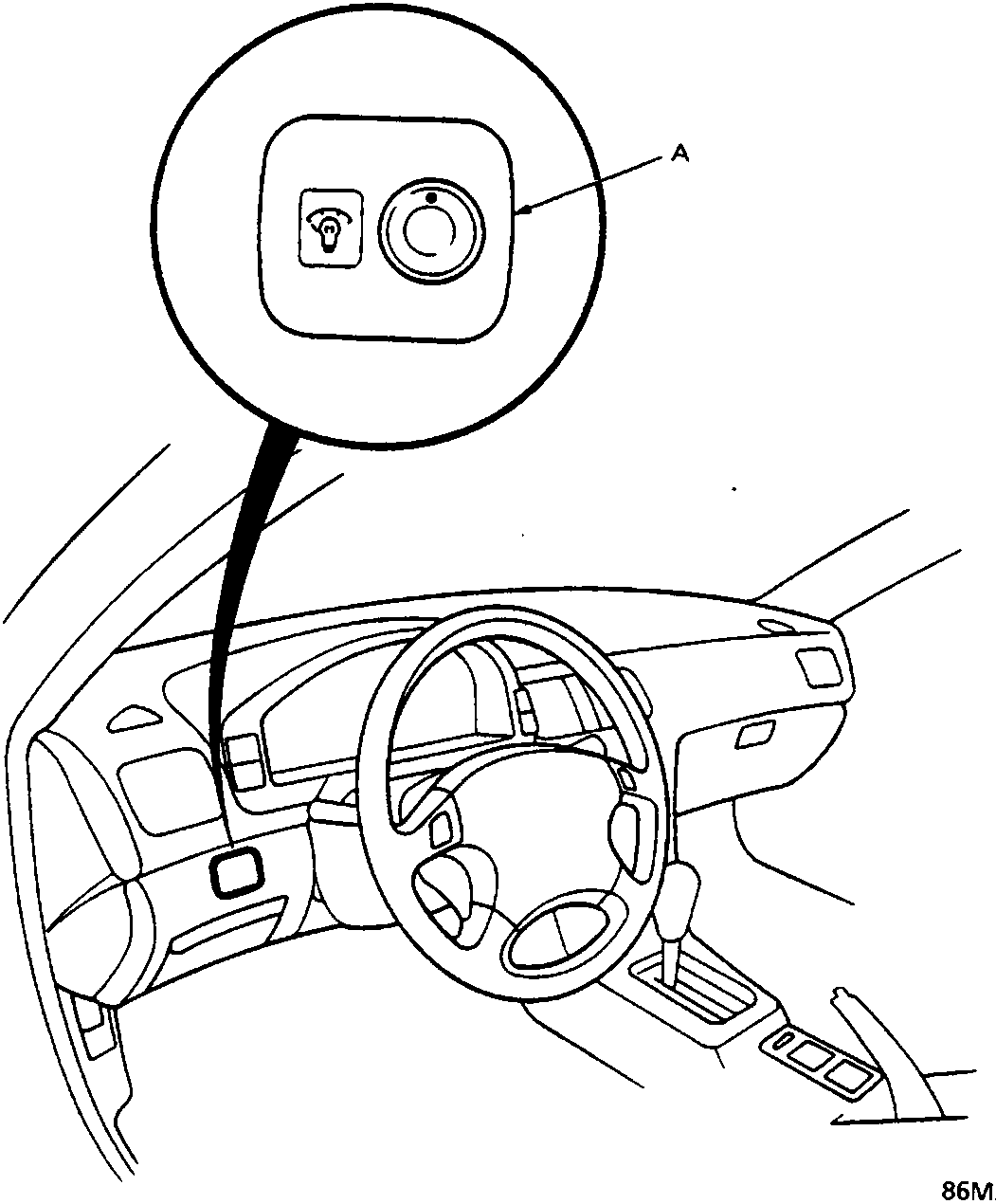

Line drawing of a vehicle dashboard showing the steering wheel and instrument cluster. A circular inset magnifies the area to the left of the steering wheel, highlighting a light symbol button and a rotary dial labeled 'A'.
  1. A Dash lights brightness controller (The control unit is built into the controller)
