18 · Electrical

Integrated control unit

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Integrated control unit
ElectricalIntegrated control unit

Integrated control unit – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

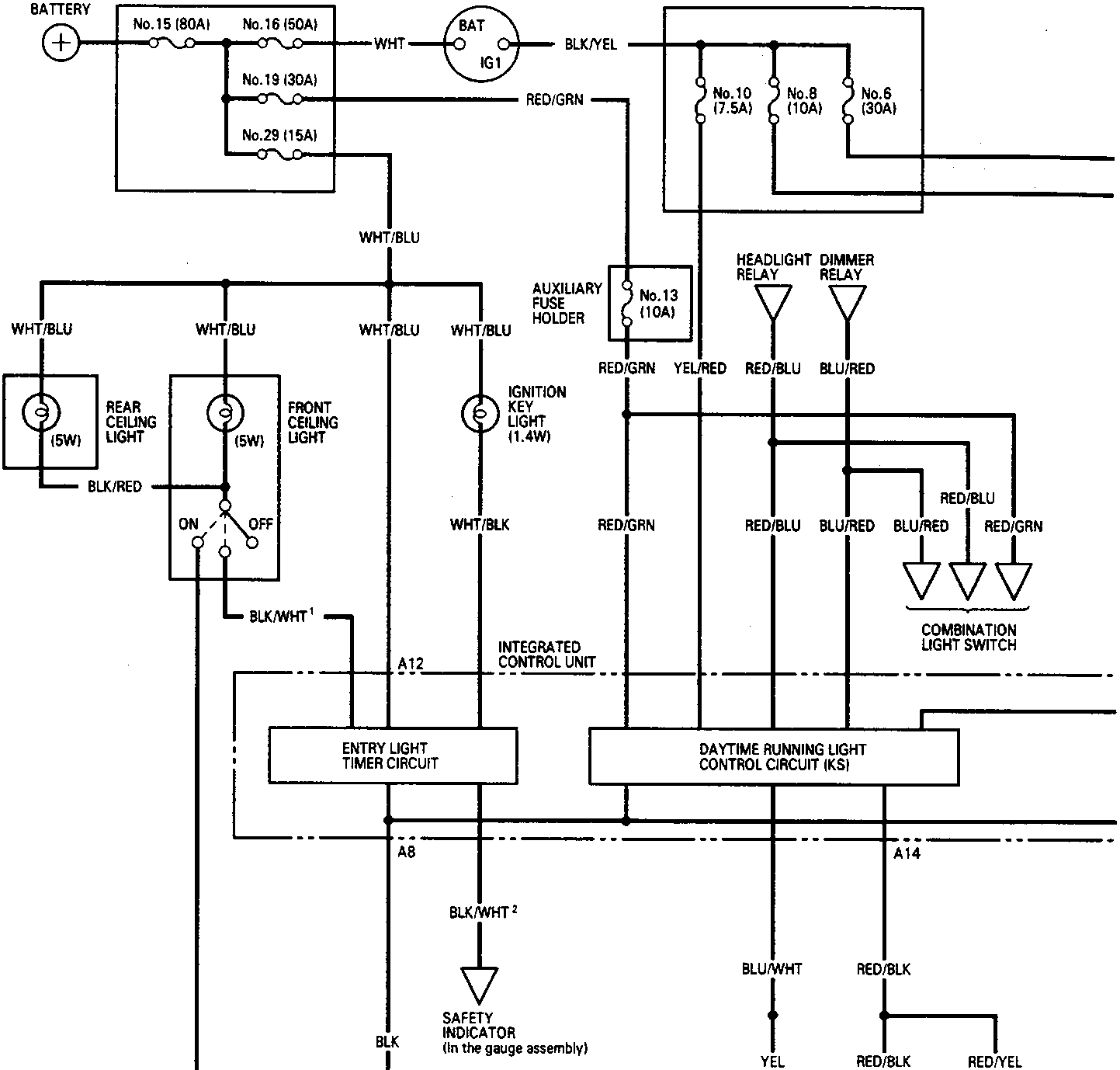

INTEGRATED CONTROL UNIT

Circuit Diagram

Electrical circuit diagram showing the Integrated Control Unit, fuse/relay boxes, ignition switch, ceiling lights, entry light timer circuit, daytime running light control circuit, and various switches and indicators with wire color codes.

86M 2126
