18 · Electrical

Adjustment (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalAdjustment · page 2 of 2

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM
  1. Remove the gauge assembly .
  2. Disassemble the gauge assembly .

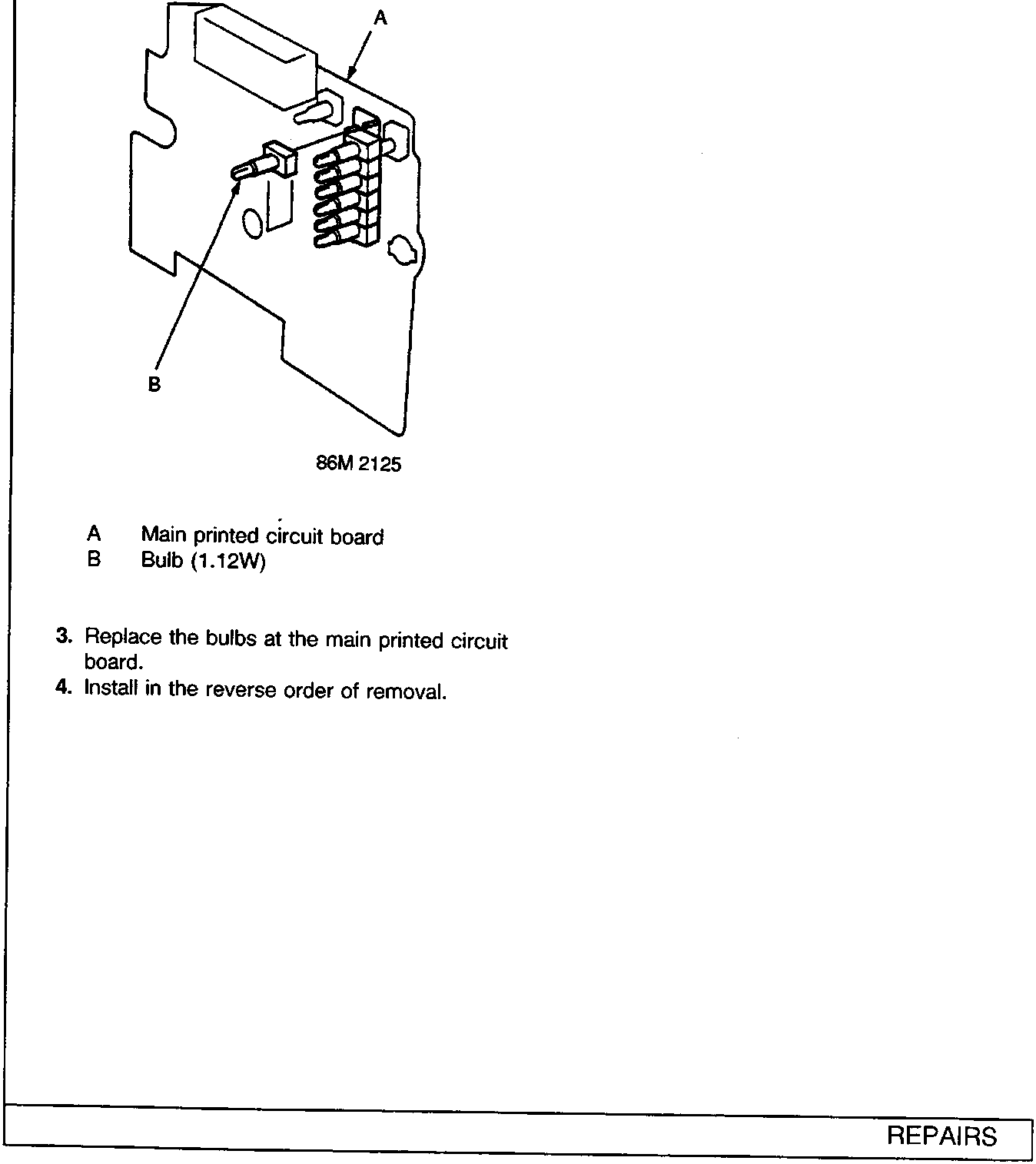

Diagram of gauge assembly showing main printed circuit board and bulb locations
  1. A Main printed circuit board
  2. B Bulb (1.12W)
  3. Replace the bulbs at the main printed circuit board.
  4. Install in the reverse order of removal.
