Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Rear Interior Light:

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Rear Interior Light:
ElectricalRear Interior Light:

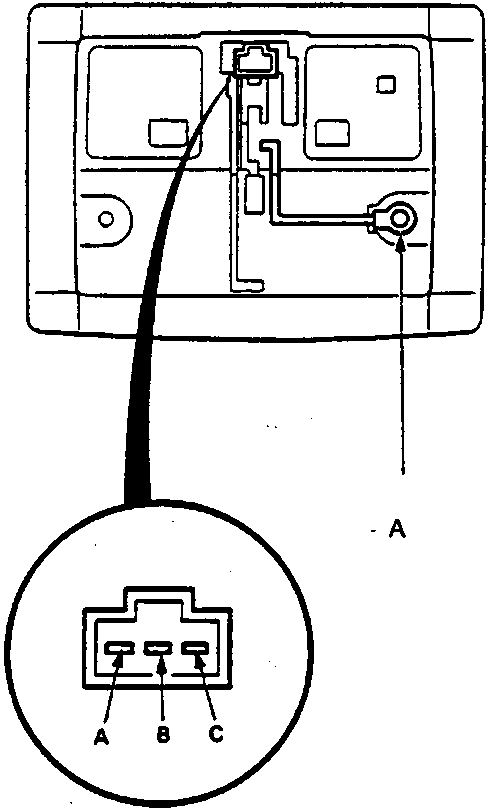

Diagram showing the rear interior light connector location and a close-up of the 2-P connector with terminals A, B, and C.

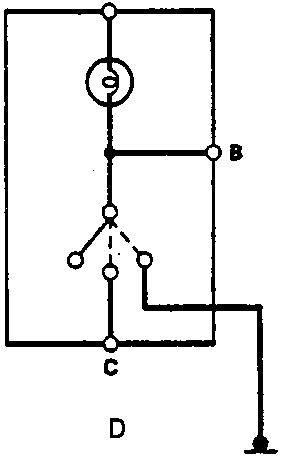

Circuit diagram for the rear interior light showing connections to Earth, Fuse 29 (15A), Rear interior light, Integrated control unit, and Earth.
  1. If there is no continuity in each switch position, replace the bulb.

Rear Interior Light:

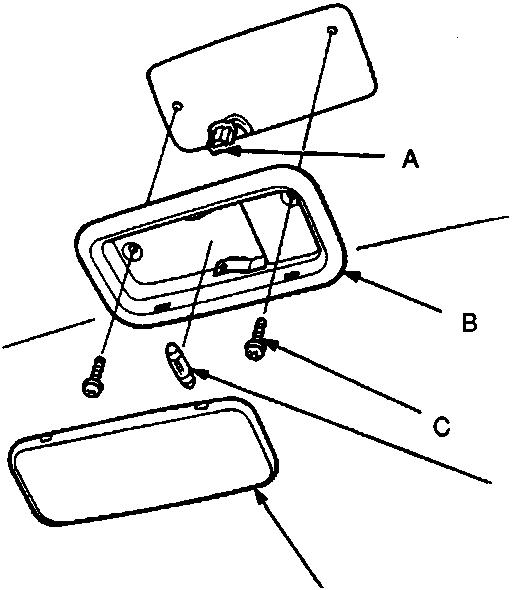

Exploded view of the rear interior light assembly showing the lens, housing, screws, bulb, and 2-P connector.
  1. A 2 – P connector
  2. B Housing
  3. C Screw
  4. D Bulb (5W)
  5. E Lens
  6. Turn the front interior light switch OFF and pry the rear interior light lens off.
  7. Remove the two screws and housing.
  8. Disconnect the 2 – P connector from the housing.
