ElectricalComponent Location

Component Location

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM

Note: LHD type is shown, RHD type is similar.

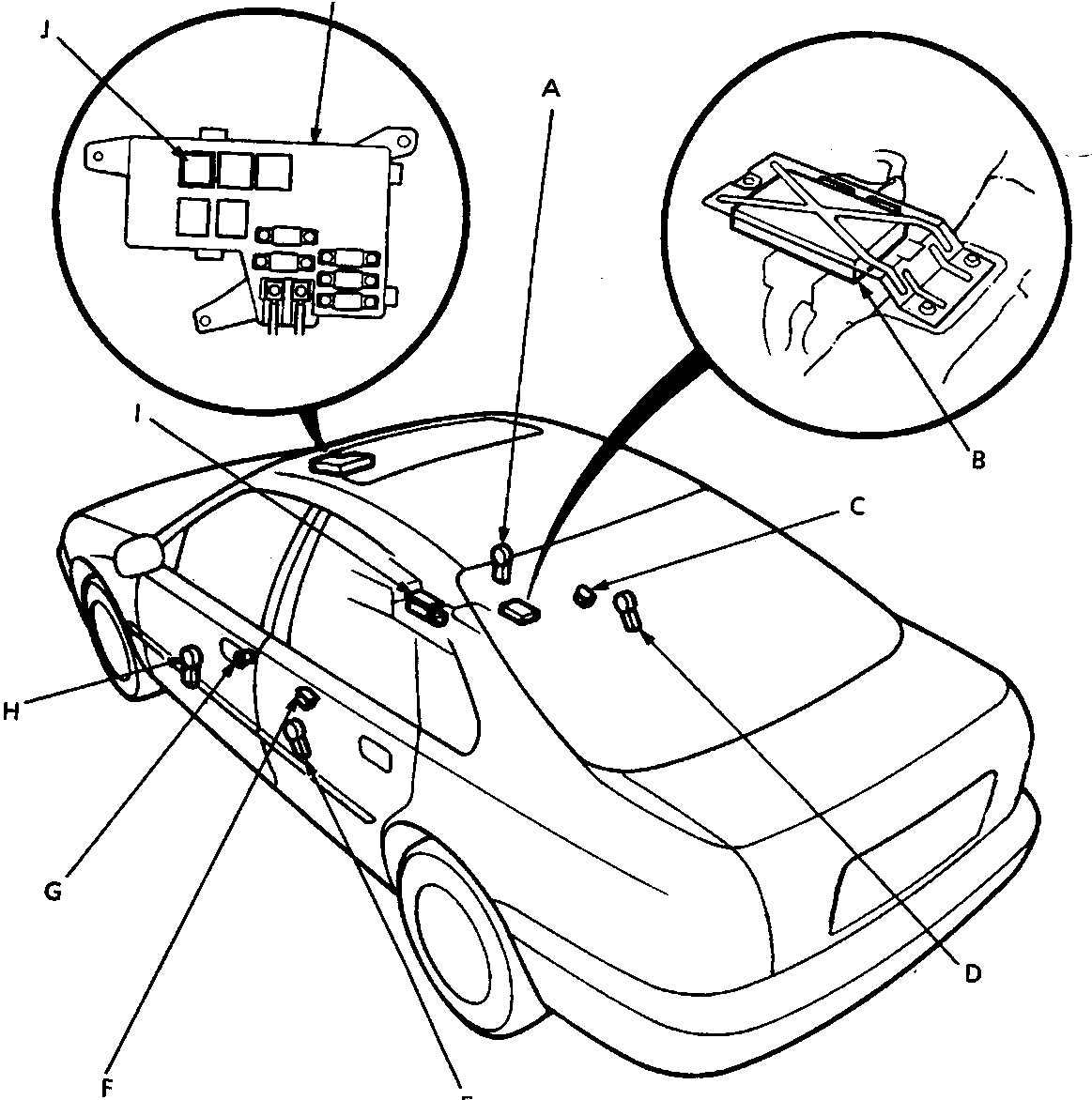

Diagram showing component locations on a car body with callout letters A through K, including inset views of the relay box and key-off operation control unit.
AFront passenger window motorHDriver's window motor
BKey – off operation control unitIMaster power window switch
CRight rear window switchJPower window relay
DRight rear window motorKUnder bonnet relay box
ELeft rear window motor
FLeft rear window switch
GKey cylinder switch
