ElectricalReplacement · page 1 of 5

Replacement

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes. see SUPPLEMENTARY RESTRAINT SYSTEM

Note: LHD type is shown, RHD type is similar.

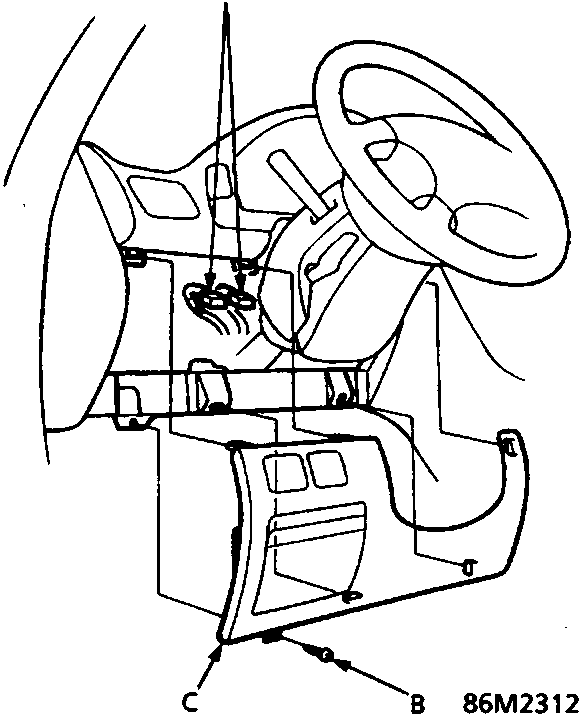

Diagram showing dashboard lower cover area with callouts A (Connector(s)), B (Screw), C (Dashboard lower cover).
  1. Remove the screw and dashboard lower cover, then disconnect the connector(s) from the switch(es).

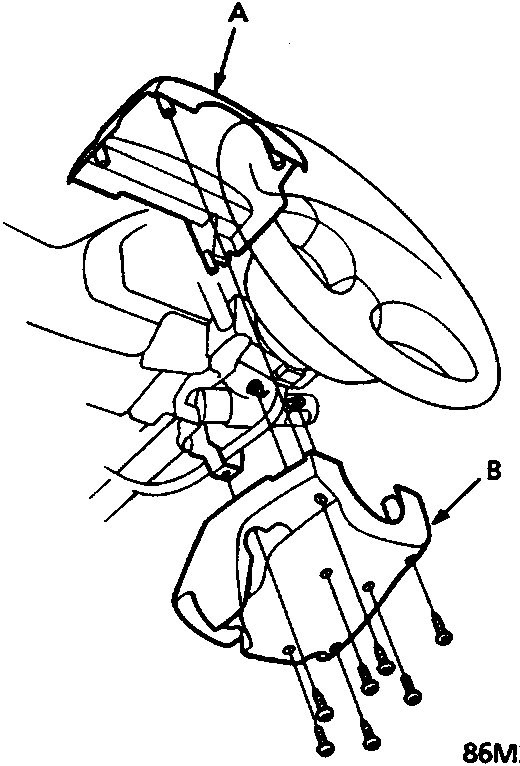

Diagram showing steering column upper and lower covers with callouts A (Column upper cover), B (Column lower cover).
  1. Remove the steering column covers.

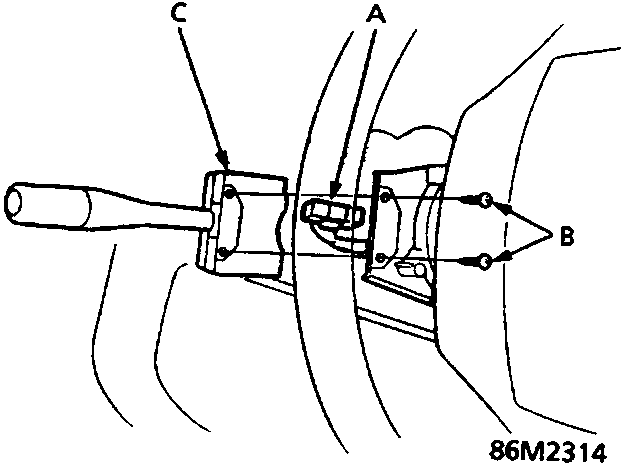

Diagram showing windscreen wiper/wash switch with callouts A (8-P connector), B (Screws), C (Windscreen wiper/wash switch).
  1. Disconnect the 8-P connector from the windshield wiper/washer switch, then remove the two screws and the switch.
