ElectricalOriginal page

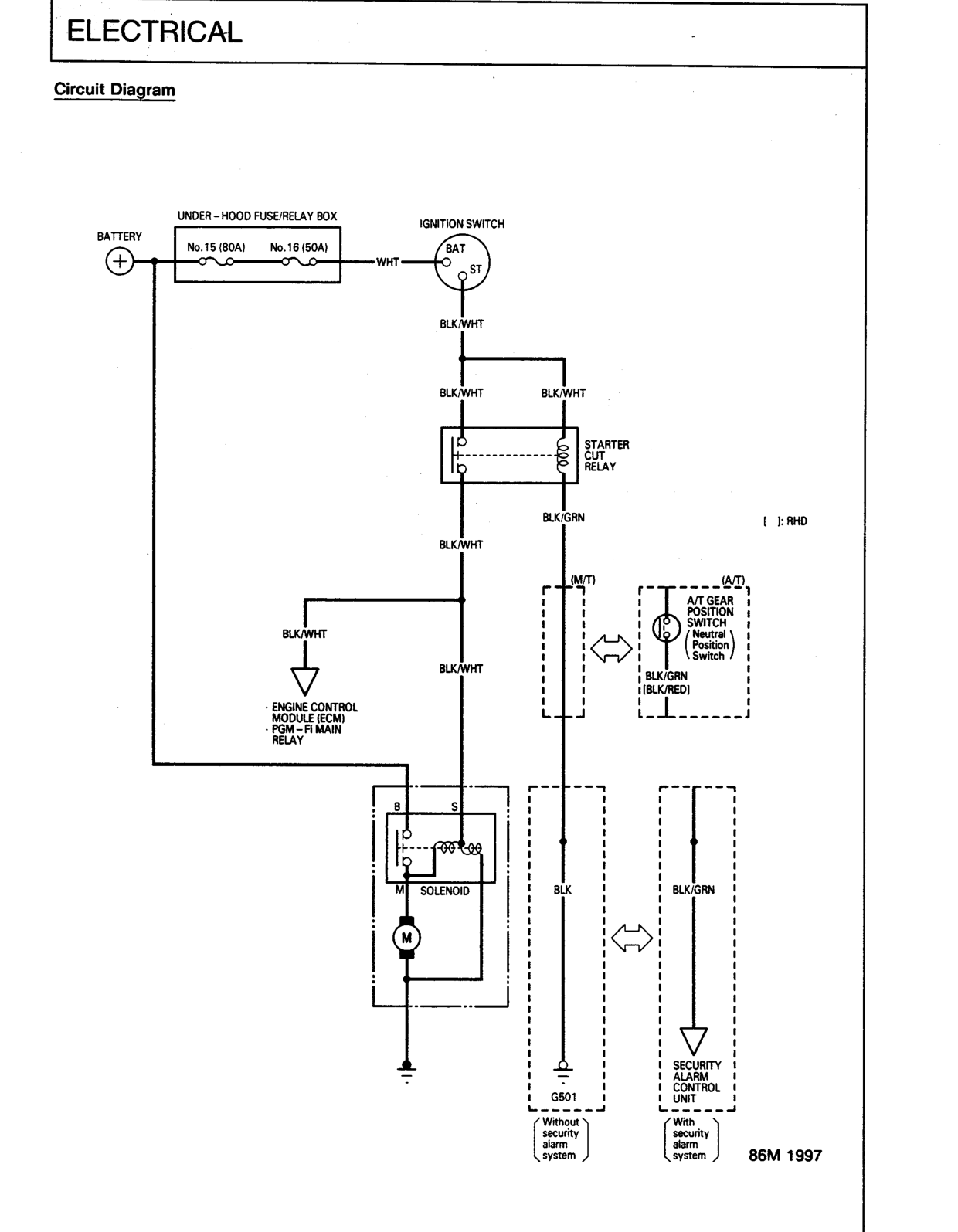

Original page – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

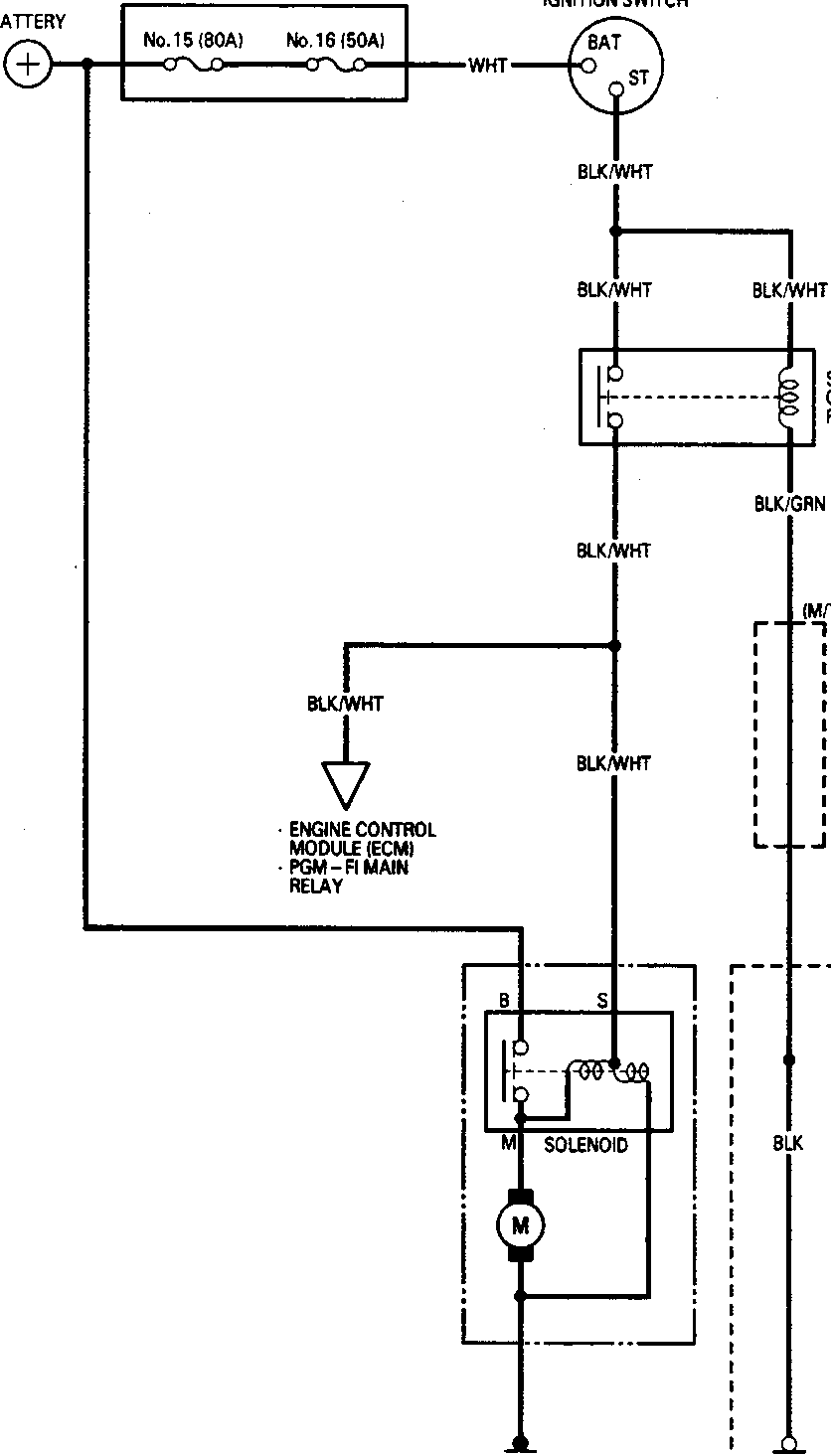

Electrical circuit diagram showing the starter motor system, including the battery, under-hood fuse/relay box, ignition switch, starter cut relay, solenoid, and connections to the engine control module and security alarm control unit. Wire colors and component labels are indicated.
86M 1997
