18 · Electrical

Driver's Switch

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Driver's Switch
ElectricalDriver's Switch

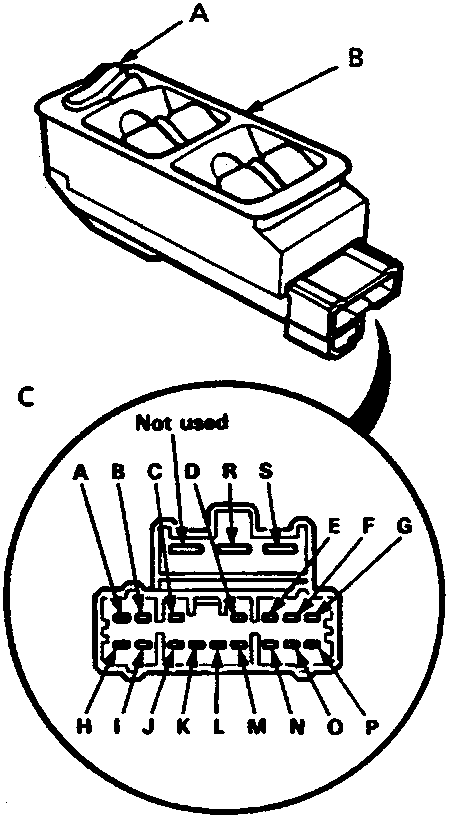

Diagram of the master power window switch assembly showing labels A and B, with a circular inset C showing the LHD terminal layout (A-P) including 'Not used' terminals.

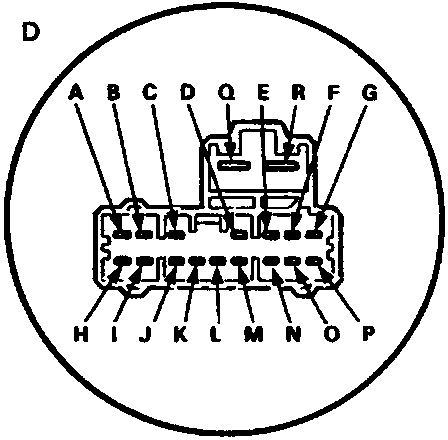

Circular diagram D showing the RHD terminal layout for the master power window switch (A-P).

86M2291

  • A Main switch
  • B Master power window switch
  • C LHD
  • D RHD
  1. Lever the switch out of the floor console.

Driver's Switch

Terminal
Position		G [A]P [J]E [C]N [H]
OFF●—●●—●●—●
UP●—●●
DOWN●—●●—●
DOWN (AUTO)●—●●—●

Front Passenger Switch

TerminalJ [N]L [L]A [G]R [R]S [Q]
PositionMain switch
OFFON●—●●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●
UPON●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●
DOWNON●—●●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●

Left Rear Switch *

TerminalJ [N]L [L]A [G]R [R]S [Q]
PositionMain switch
OFFON●—●●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●
UPON●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●
DOWNON●—●●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●

Right Rear Switch *

TerminalJ [N]L [L]A [G]R [R]S [Q]
PositionMain switch
OFFON●—●●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●
UPON●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●
DOWNON●—●●—●
●—●●—●●—●●—●
OFF●—●●—●●—●●—●●—●

* : With rear power windows

[ ]: RHD

  1. Check for continuity between the terminals in each switch position according to the table.
