Repairs › Switch Test
ElectricalSwitch Test

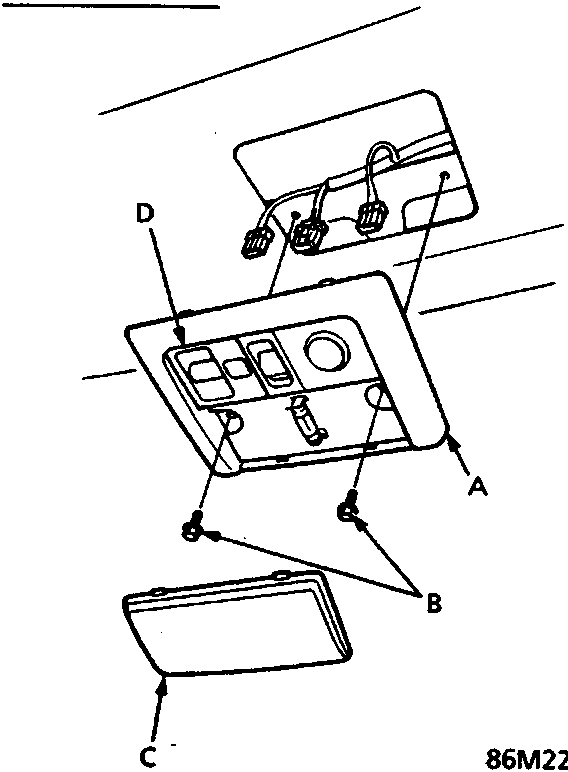

Exploded view of the interior light housing, bolts, lens, and sun roof switch assembly

A Interior light housing
B Bolts
C Lens
D Sun roof switch

  1. Turn the front interior light switch OFF.
  2. Pry the interior light lens off from the light housing.
  3. Remove the two bolts and the light housing.
  4. Disconnect the connectors from the light housing.

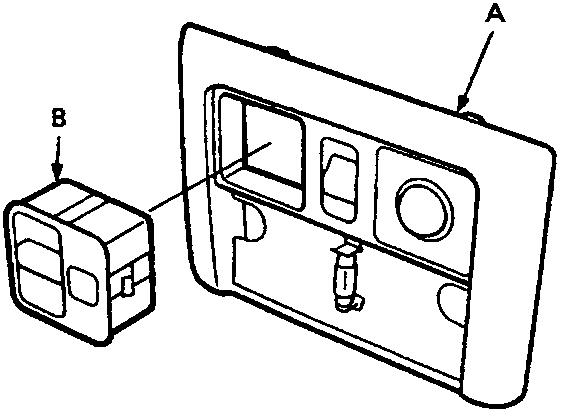

Interior light housing with the sun roof switch being separated from it

A Interior light housing
B Sun roof switch

  1. Separate the sun roof switch from the interior light housing.

Switch Test

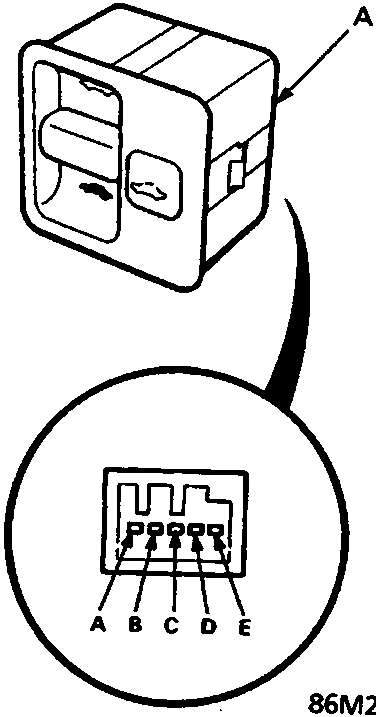

Sun roof switch showing the connector pin layout labeled A through E

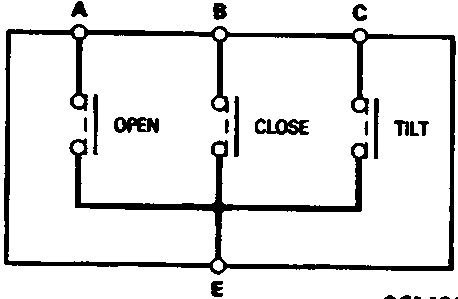

Circuit diagram for the sun roof switch showing connections between terminals A, B, C, and E for OPEN, CLOSE, and TILT positions

A Sun roof switch

PositionTerminal ATerminal BTerminal CTerminal E
TILT●●
CLOSE●●●
OPEN●●●●
  1. Check for continuity between the terminals in each switch position according to the table.
