Rear fog light

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Rear fog light
ElectricalRear fog light

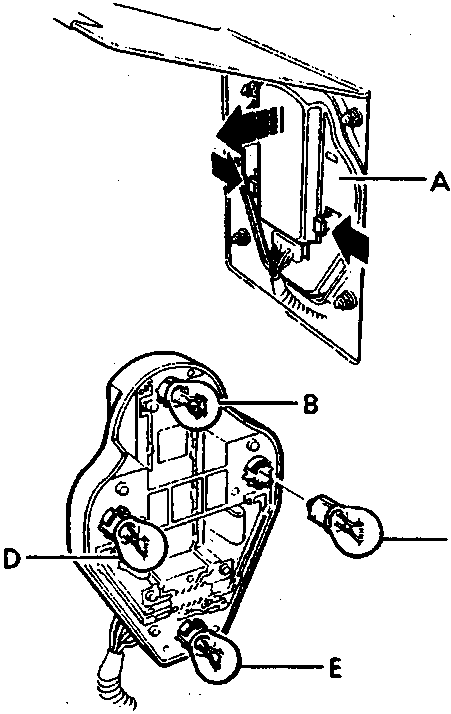

Diagram of tail light bulb holder panel with callouts A, B, C, D, E

86M2685

  1. A Bulb holder panel
  2. B Brake/Tail light bulb (21/5W)
  3. C Indicator light bulb (21W)
  4. D Reverse light bulb (21W)
  5. E Rear fog guard bulb (21W)
  6. Open the boot lid and access panel.
  7. Squeeze both levers to remove the bulb holder panel.
  8. Push and turn the bulb 45° anti-clockwise and replace it.

REAR FOG LIGHT

Switch Removal

Note: For the rear fog light bulb replacement refer to previous page.

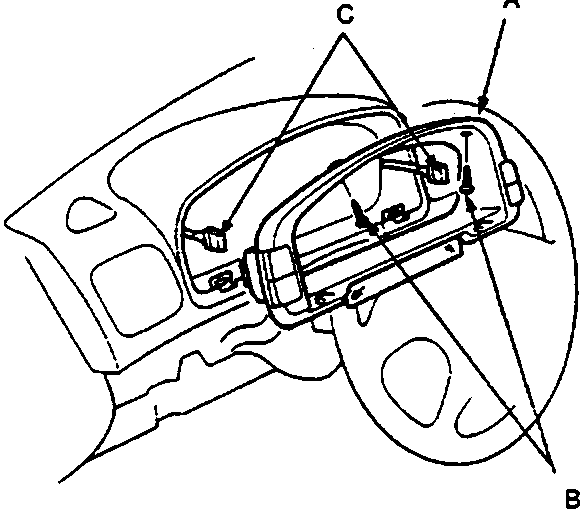

Diagram of instrument panel area showing switch location with callouts A, B, C

86M 2175

  1. A Instrument panel
  2. B Screws
  3. C Connectors
  4. Remove the two screws and instrument panel.
  5. Disconnect each connector from the instrument panel.

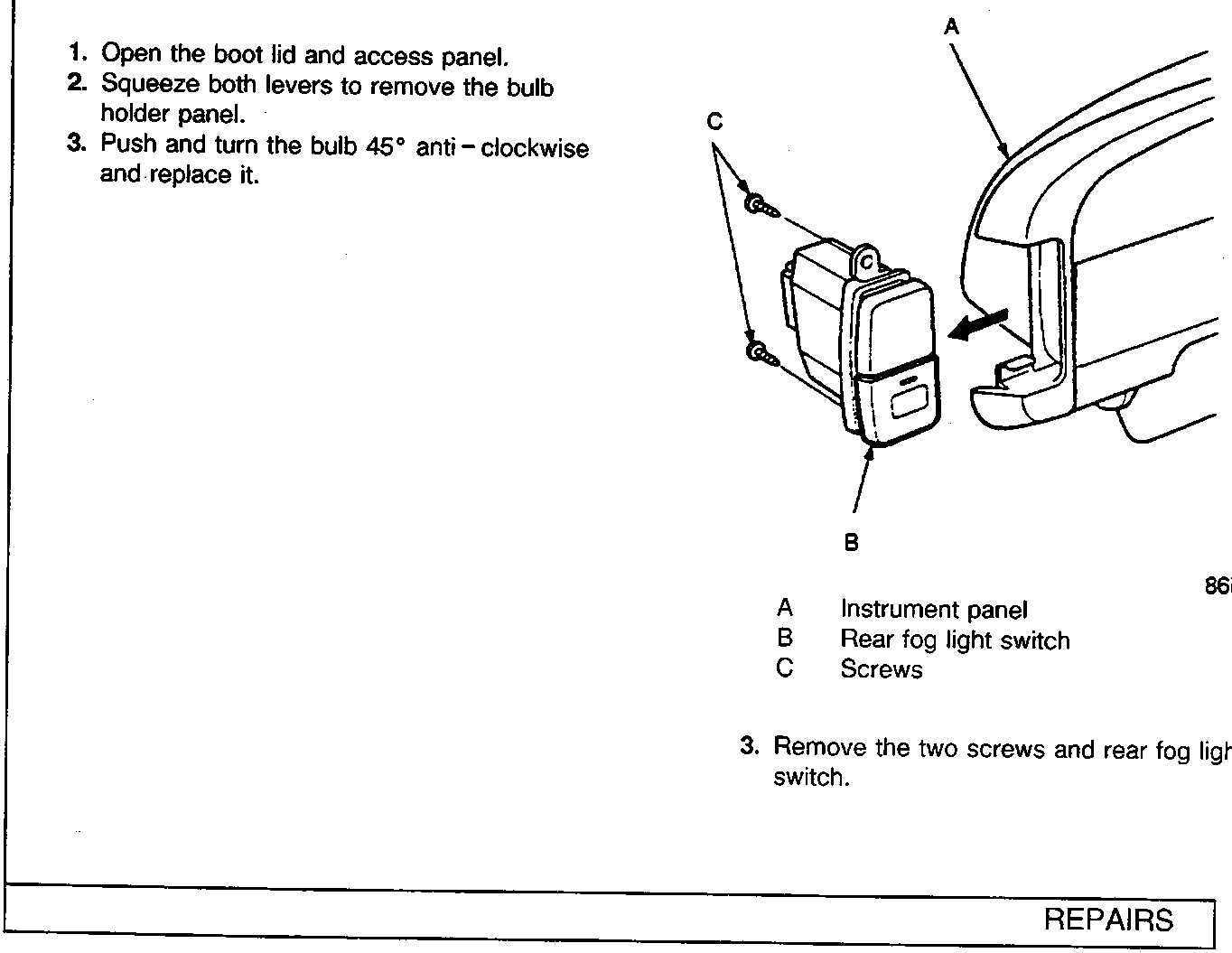

Diagram of rear fog light switch removal showing callouts A, B, C

86M 2176

  1. A Instrument panel
  2. B Rear fog light switch
  3. C Screws
  4. Remove the two screws and rear fog light switch.
