Ignition control module (icm)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Repairs › Ignition control module (icm)

ElectricalIgnition control module (icm) · page 1 of 4

Ignition control module (icm) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

IGNITION CONTROL MODULE (ICM)

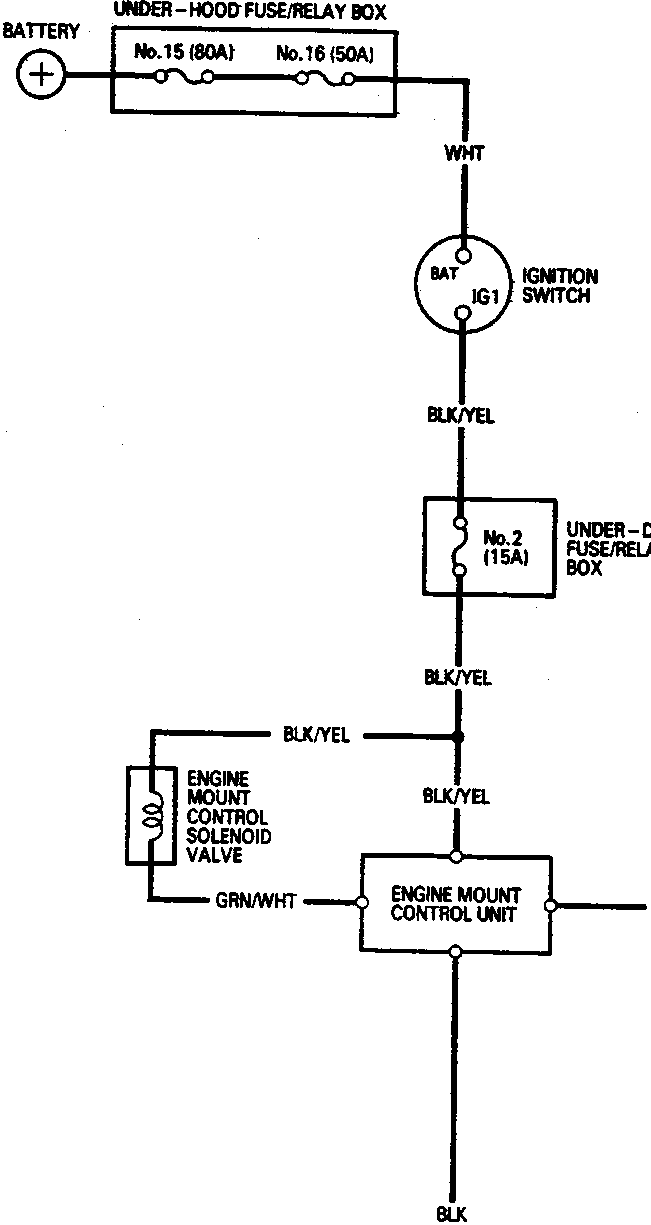

Electrical circuit diagram showing the connection from the battery through the under-hood fuse/relay box (No.15 80A, No.16 50A), ignition switch, under-dash fuse/relay box (No.2 15A), to the engine mount control solenoid valve and engine mount control unit, with connections to the ignition control module (ICM) and ground G401. Wire colors indicated as WHT, BLK/YEL, GRN/WHT, BLU, and BLK. Figure number 86M 2331.
