Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Input Test (page 4 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalInput Test · page 4 of 4

Input Test (page 4 of 4) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

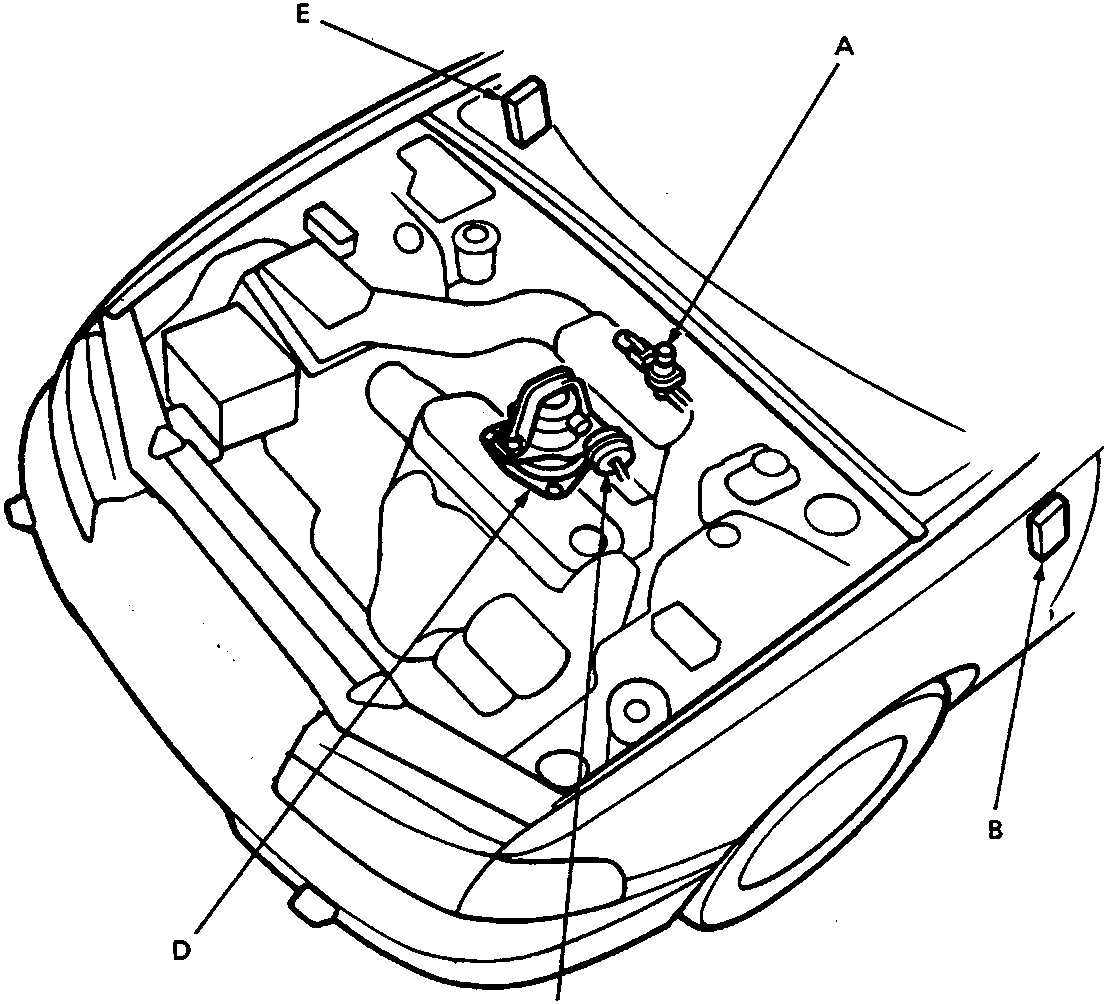

Diagram of engine bay showing component locations with callout letters A, B, C, D, and E pointing to specific parts. Figure number 86M2330 is printed below the diagram.
  • A Solenoid valve
  • B Engine mount control unit (RHD)
  • C Vacuum diaphragm actuator
  • D Engine mount
  • E Engine mount control unit (LHD)
