Input Test (page 2 of 4)

Make

Rover

Model

600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Repairs

ElectricalInput Test · page 2 of 4

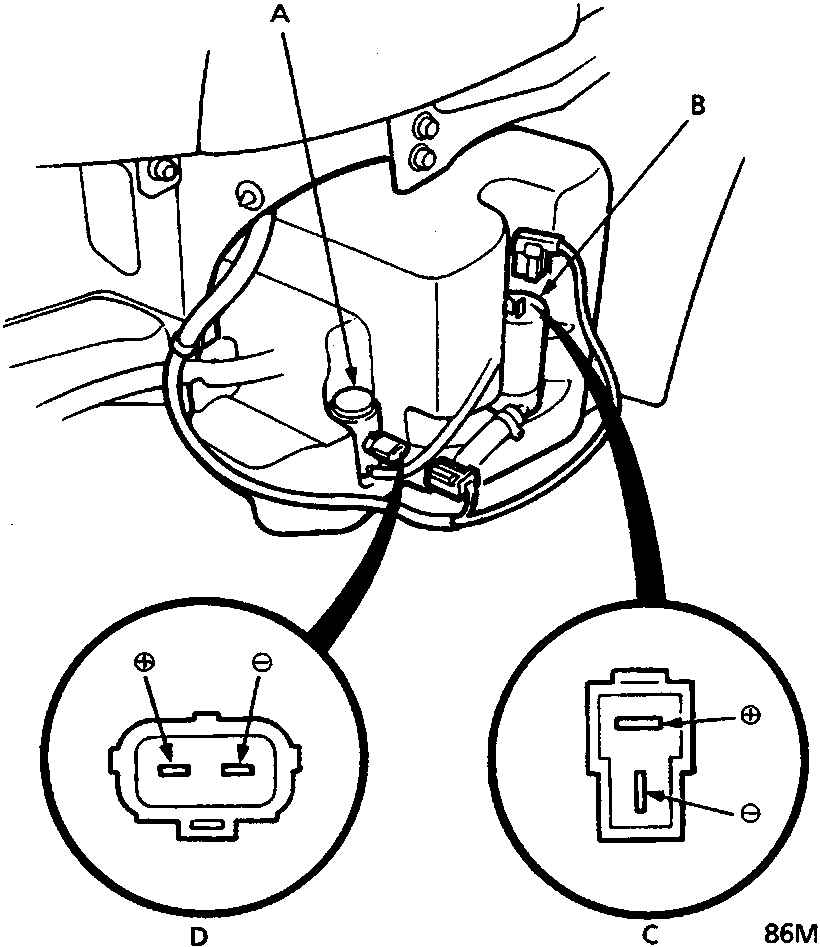

• A Windscreen washer motor
• B Headlight washer motor
• C View from terminal side
• D View from terminal side

1. Remove the left inner fender.
2. Disconnect the 2 – P connector from the washer motor.
3. Test the washer motor by connecting battery power to the (+) terminal and earthing the (–) terminal.

• If the motor does not run, or fails to run smoothly, replace it.
• If the motor runs smoothly but little or no washer fluid is pumped, check for a disconnected, blocked washer hose or a clogged pump outlet.
