ElectricalComponent Location · page 1 of 3

Component Location

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes.

Note: LHD type is shown, RHD type is similar.

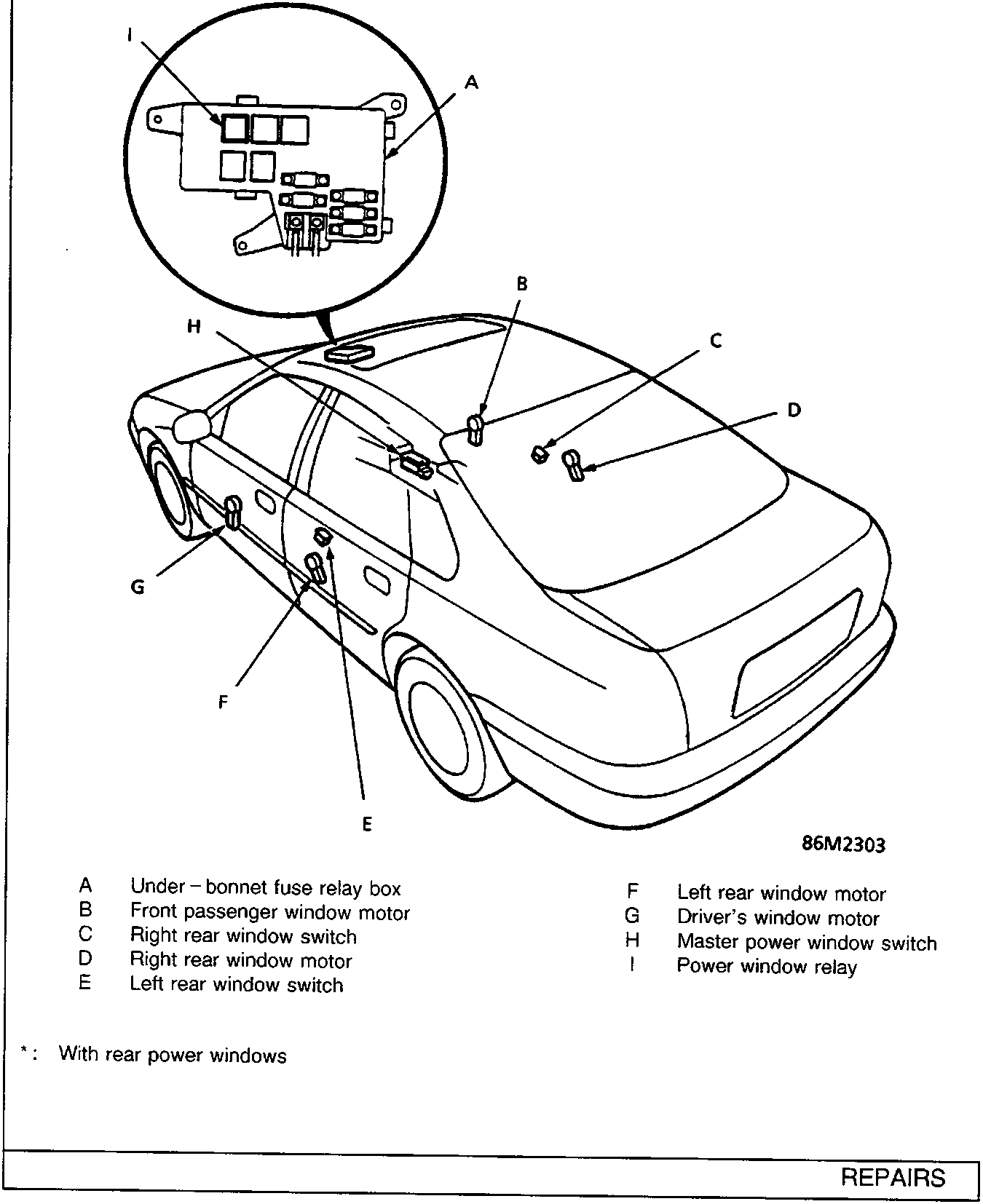

Diagram showing the location of power window components on a car body, including fuse relay box, switches, and motors. An inset circle shows the fuse relay box layout.
86M2303
  1. A Under – bonnet fuse relay box
  2. B Front passenger window motor
  3. C Right rear window switch
  4. D Right rear window motor
  5. E Left rear window switch
  6. F Left rear window motor
  7. G Driver’s window motor
  8. H Master power window switch
  9. I Power window relay

* : With rear power windows
