Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Component Location (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalComponent Location · page 2 of 3

Component Location (page 2 of 3) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

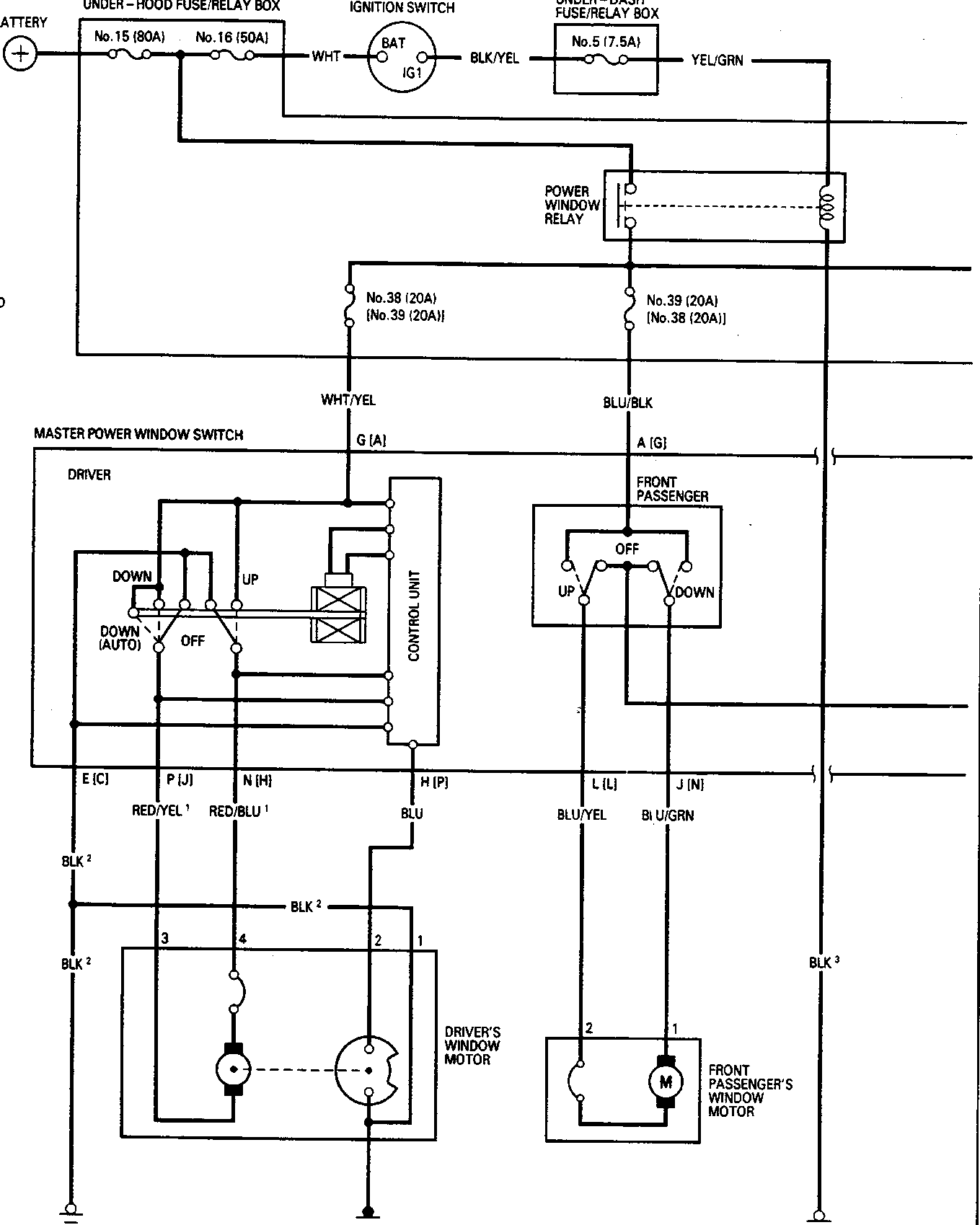

Electrical circuit diagram for the power window system showing connections between battery, fuses, ignition switch, power window relay, master power window switch, driver's window motor, and front passenger's window motor.
ELECTRICAL CIRCUIT DIAGRAM
