ElectricalAdjustment

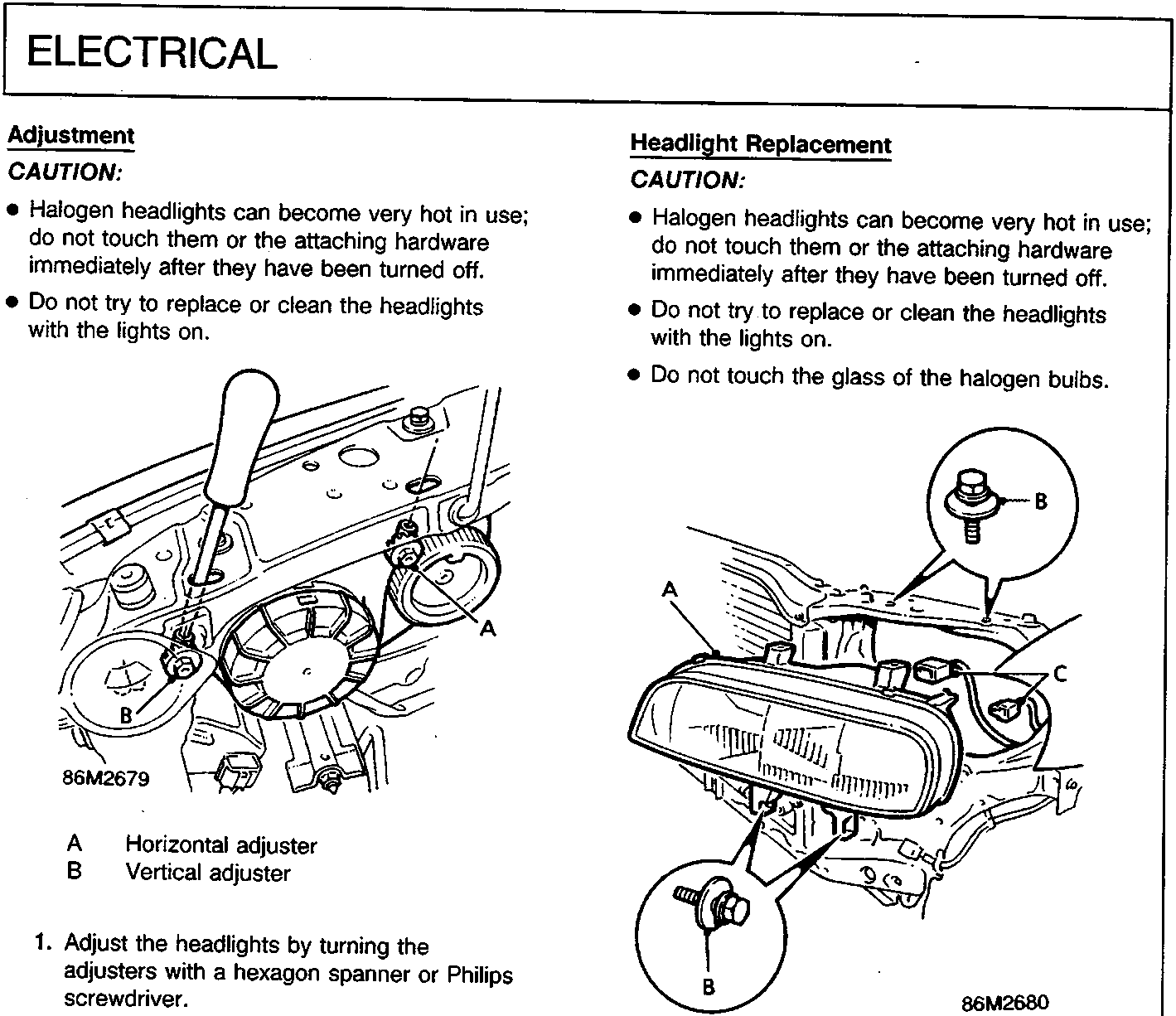

Adjustment

CAUTION:

  • Halogen headlights can become very hot in use; do not touch them or the attaching hardware immediately after they have been turned off.
  • Do not try to replace or clean the headlights with the lights on.
Diagram showing headlight adjustment points A and B with a tool inserted
  1. Horizontal adjuster
  2. Vertical adjuster
  3. Adjust the headlights by turning the adjusters with a hexagon spanner or Philips screwdriver.

Note: Adjust the headlights to local requirements.

Headlight Replacement

CAUTION:

  • Halogen headlights can become very hot in use; do not touch them or the attaching hardware immediately after they have been turned off.
  • Do not try to replace or clean the headlights with the lights on.
  • Do not touch the glass of the halogen bulbs.
Diagram showing headlight assembly removal with callouts A, B, and C
  1. Headlight assembly
  2. Bolts
  3. Connectors
  4. Remove the front bumper. see BODY
  5. Disconnect the 5 – P connector from the headlight.

Note: Disconnect the 3 – P connector from the headlight adjuster unit (KG).

  1. Remove the four bolts securing the headlight assembly.
  2. Remove the headlight.

Note:

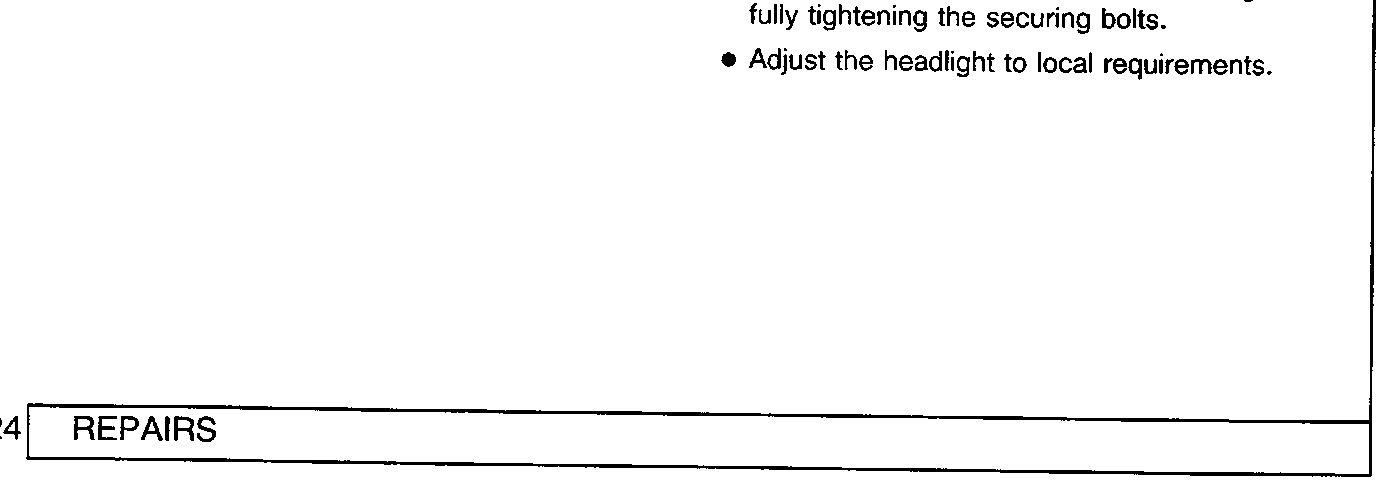

  • After installing the headlight, check the alignment with the bonnet and front wing before fully tightening the securing bolts.
  • Adjust the headlight to local requirements.
