ElectricalKEYLESS ENTRY SYSTEM (KE) Without Security Alarm System

KEYLESS ENTRY SYSTEM (KE)
Without Security Alarm System

Component Location

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes.

Note: LHD type is shown, RHD type is similar.

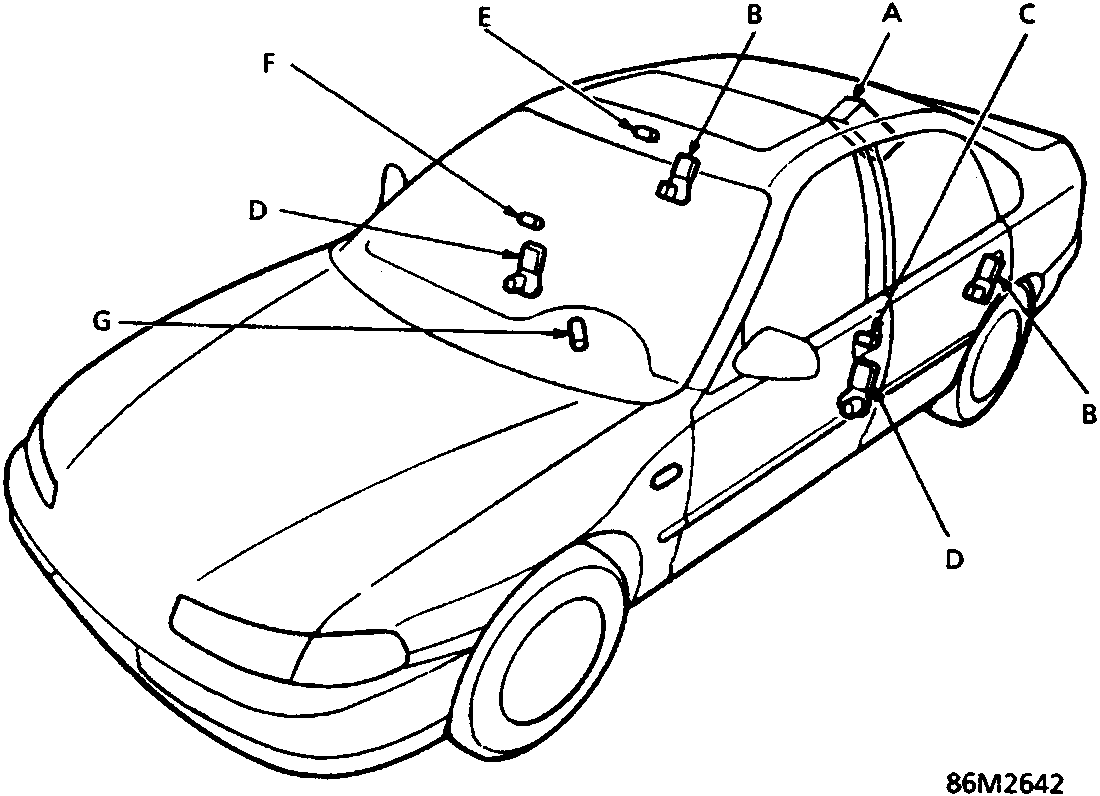

Diagram of car showing component locations labeled A through G
  1. A Keyless power door lock control unit
  2. B Rear door lock actuators
  3. C Driver's door key cylinder switch
  4. D Front door lock actuators
  5. E Receiver unit
  6. F Front passenger's door key cylinder switch
  7. G Ignition key switch
