Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Battery replacement (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalBattery replacement · page 2 of 2

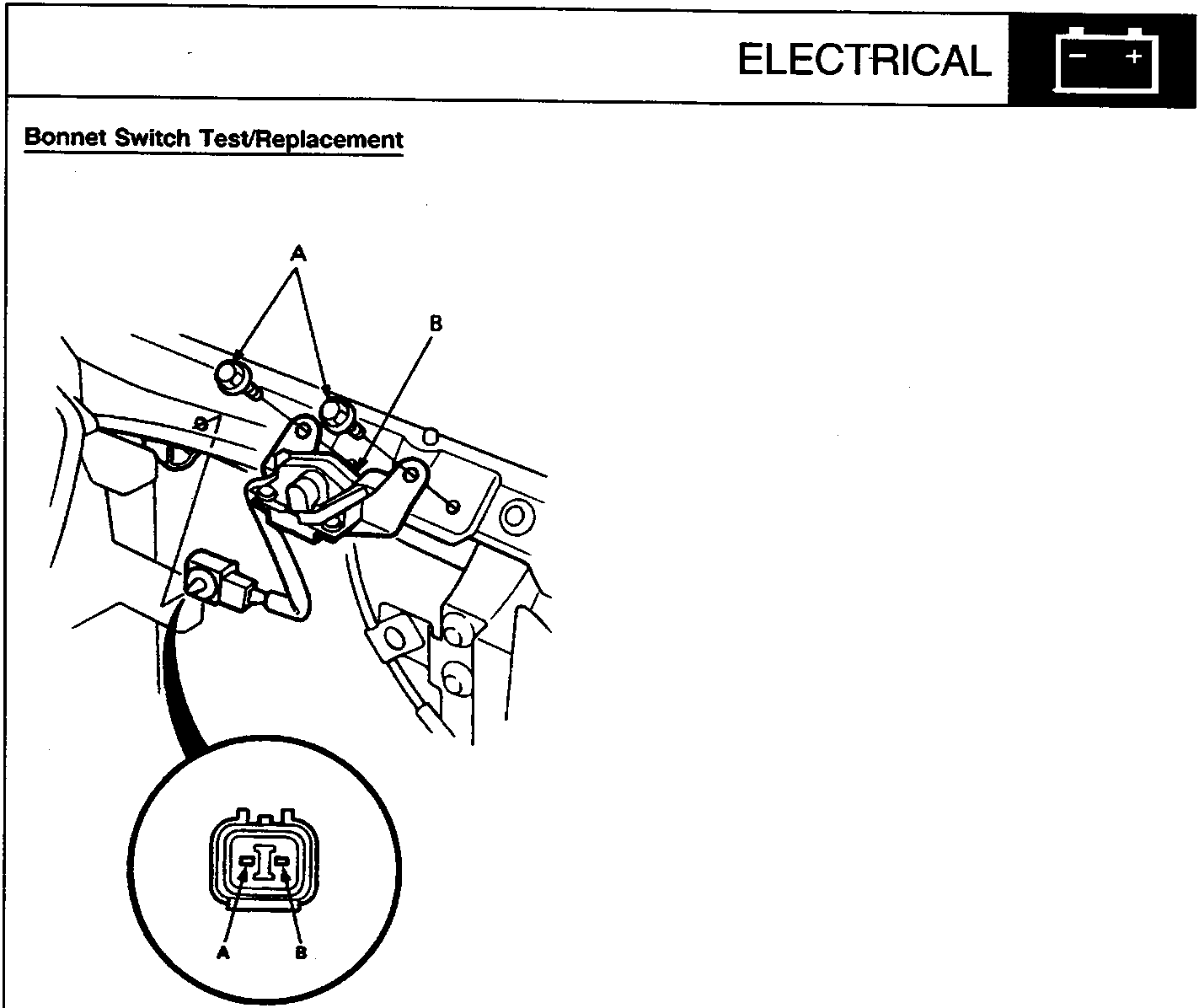

Diagram of bonnet switch assembly showing bolts A, hood switch B, and a circular inset view from the terminal side C showing the 2-P connector terminals A and B.

C,D          86M2348

  1. Bolts
  2. Hood switch
  3. View from terminal side
  4. 2 – P connector
  5. Open the bonnet.
  6. Disconnect the 2 – P connector from the bonnet switch.
  7. Remove the two bolts and replace the switch.
