UNDER FUSE/RELAY BOX

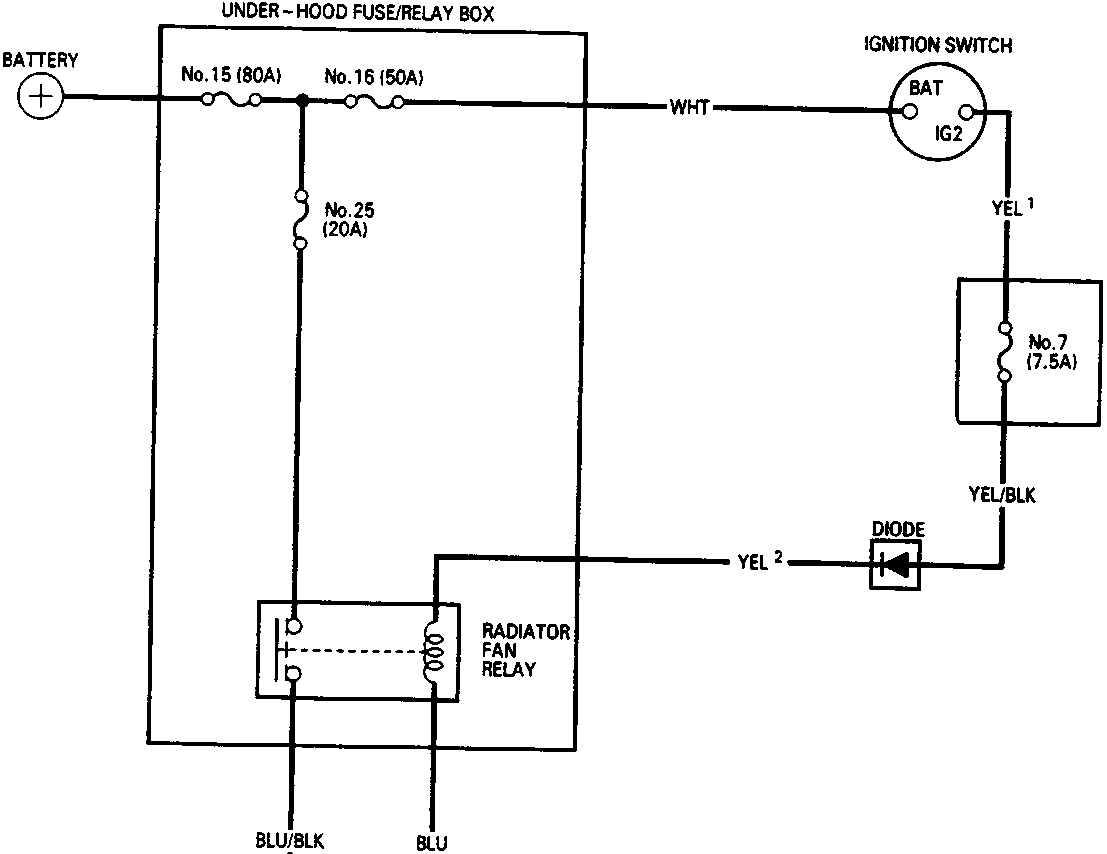

Circuit diagram showing connections between battery, under-hood fuse/relay box, ignition switch, under-dash fuse/relay box, diode, radiator fan relay, radiator fan motor, and engine coolant temperature (ECT) switch A. Includes wire color codes (WHT, YEL, YEL/BLK, BLU/BLK, BLU, BLK), fuse ratings (No.15 80A, No.16 50A, No.25 20A, No.7 7.5A), and ground points G201 and G101.

86M 2079
