18 · Electrical

Side indicator lights

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Side indicator lights
ElectricalSide indicator lights

Bulb Replacement

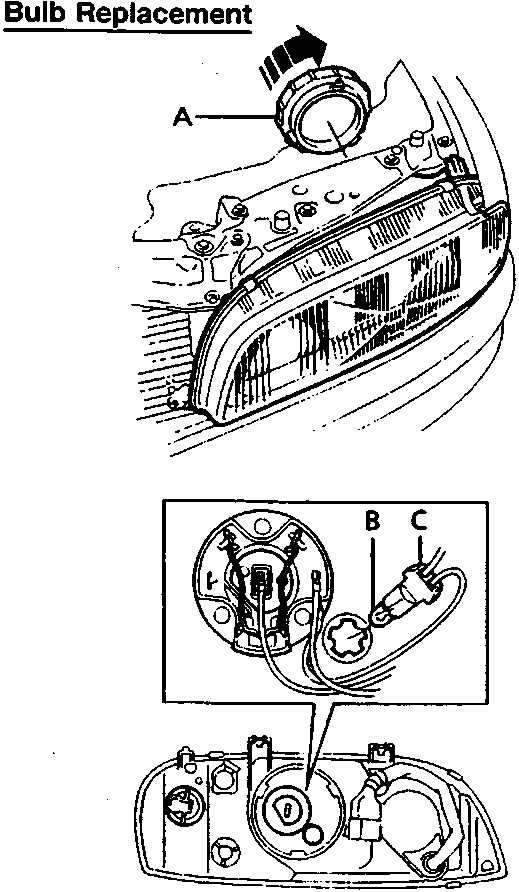

Diagram showing the front parking light assembly with callouts A, B, and C indicating the bulb holder, connector, and bulb respectively.
  1. 86M2681
  2. A Bulb holder
  3. B 2 – P Connector
  4. C Bulb
  5. Disconnect the 2 – P connector from the bulb holder.
  6. Twist anti – clockwise to release the bulb holder.
  7. Push and twist to remove the bulb from its holder.

SIDE INDICATOR LIGHTS

Replacement

CAUTION: Be careful not to damage the body and paintwork.

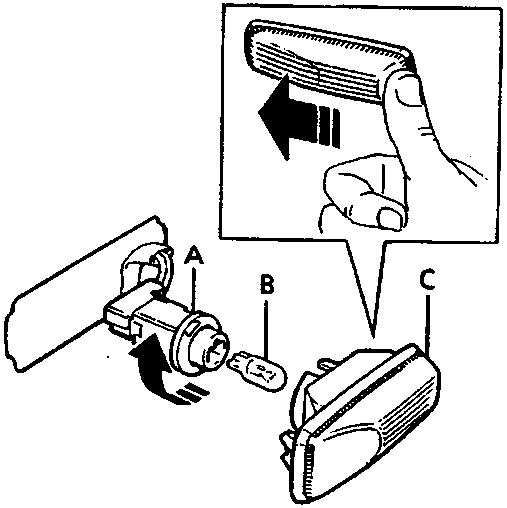

Diagram showing the side indicator light assembly being removed, with callouts A, B, and C indicating the bulb holder, bulb, and light housing respectively. An inset shows a hand pushing the rear of the light.
  1. 86M2683
  2. A Bulb holder
  3. B Bulb (5W)
  4. C Side indicator light
  5. Push the rear of the light firmly towards the front of the car to withdraw the light from the wing.
  6. Turn the bulb holder 45° anti – clockwise to remove it from its housing.
  7. Pull the bulb straight to remove from the bulb holder.
