18 · Electrical

Circuit Diagram

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Circuit Diagram
ElectricalCircuit Diagram · page 1 of 4

Circuit Diagram – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Circuit Diagram

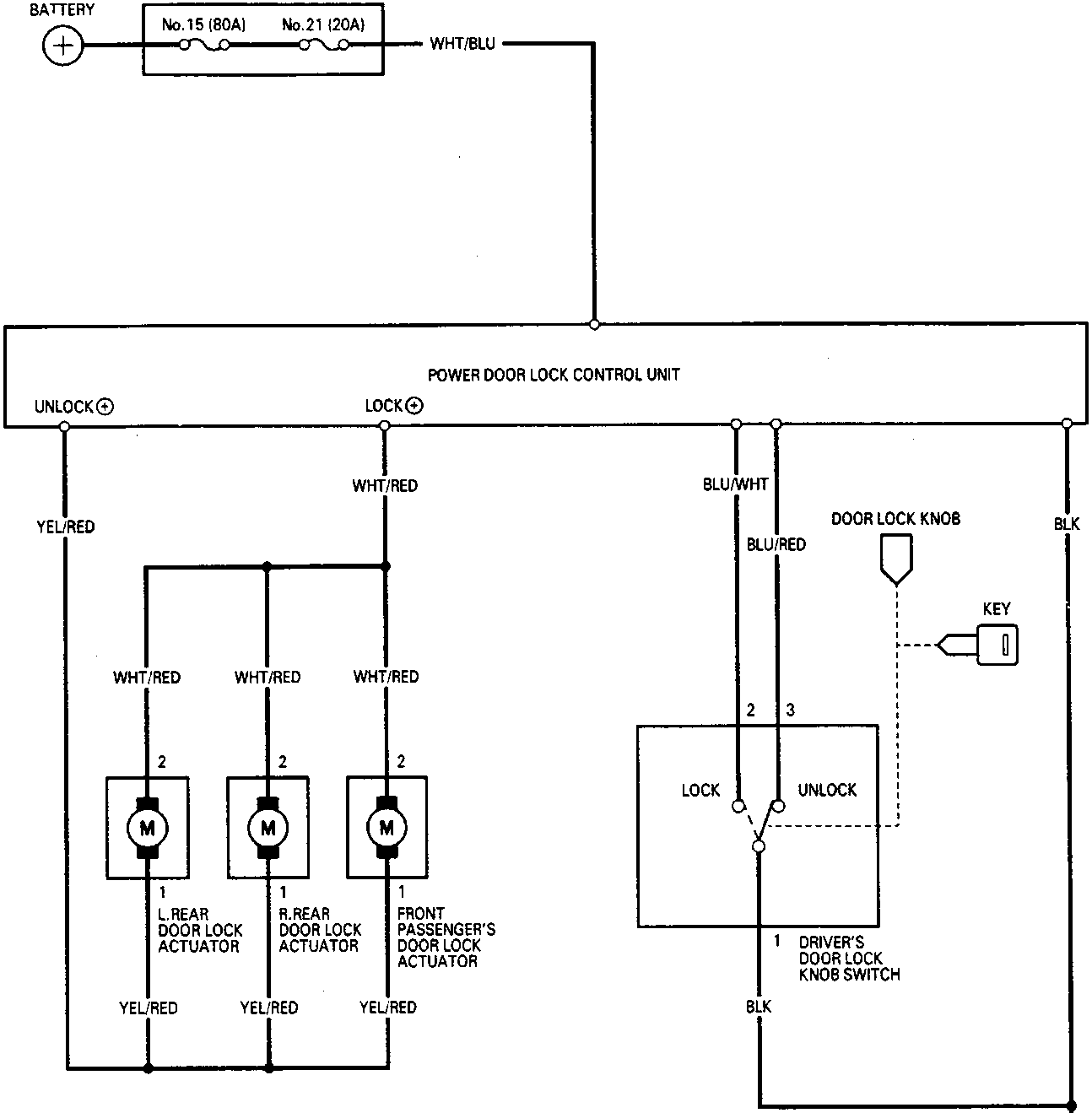

Circuit diagram for the power door lock system showing the battery, under-hood fuse/relay box, power door lock control unit, door lock actuators, and driver's door lock knob switch with wire color codes.

86M 2273 G501
