Circuit Diagram (page 3 of 4)

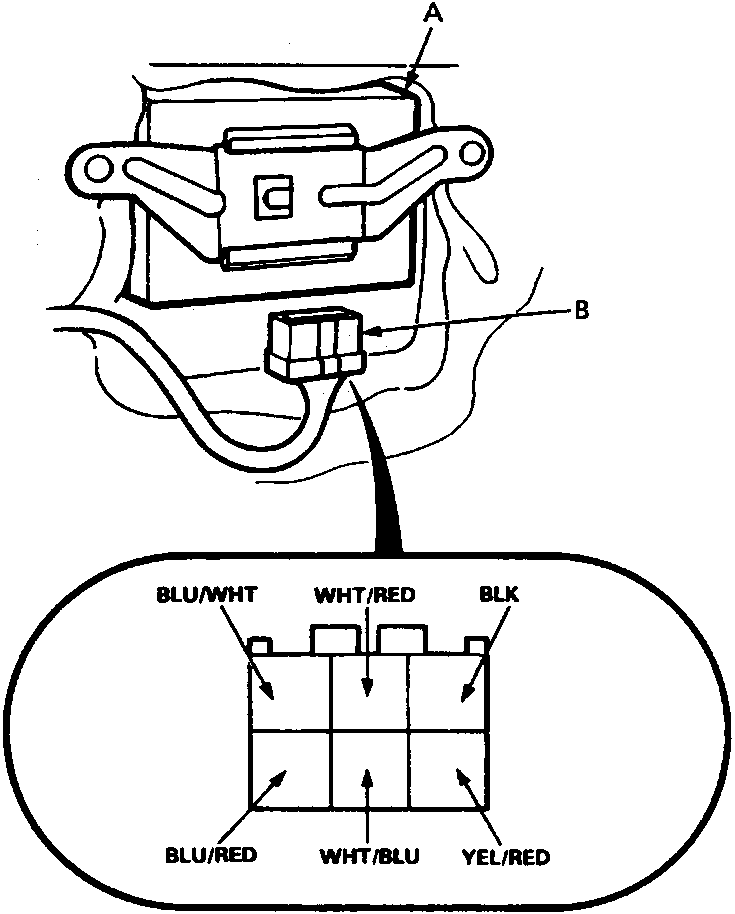

A     Control unit

B     6 – P connector

C     View from wire side

D     6 – P connector

1. Remove the driver’s door panel, see BODY.
2. Disconnect the 6 – P connector from the door lock control unit.
3. Inspect the connector and socket terminals to be sure they are all making good contact.
   • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
   • If the terminals look OK, make the following input tests at the connector.
   • If a test indicates a problem, find and correct the cause, then recheck the system.
   • If all the input tests prove OK, the control unit must be faulty; replace it.
