Performance Test
Note: Before starting the following checks, disconnect the wire from terminal M, and make a connection as described below using as heavy a wire as possible (preferably equivalent to the wire used for the car).

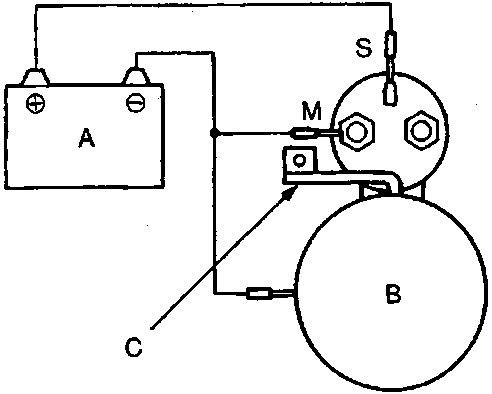

Pull – in Coil Test
- A Battery
- B Body (earth)
- C Disconnect the wire
Connect the battery as shown. If the pinion protrudes, it is working properly.
Note: Do not leave the battery connected for more than 10 seconds.

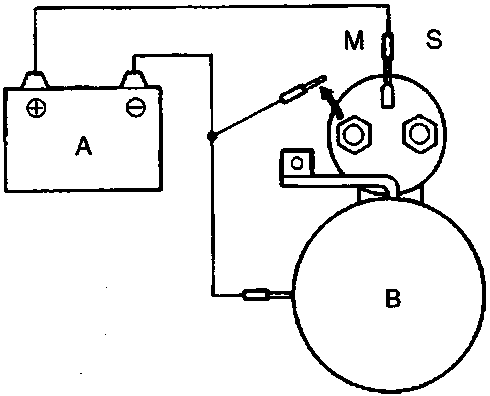

Hold – in Coil Test
- A Battery
- B Body (earth)
Disconnect the battery from the M terminal. If the pinion does not retract, the hold – in coil is working properly.
Note: Do not leave the battery connected for more than 10 seconds.

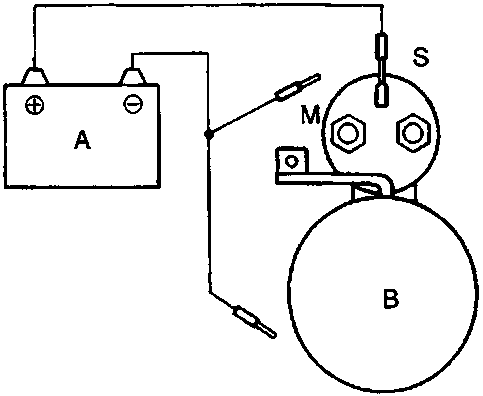

Retracting Test
- A Battery
- B Body (earth)
Also disconnect the battery from the body. If the pinion retracts immediately, it is working properly.
Note: Do not leave the battery connected for more than 10 seconds.
