Repairs › Unit Terminals
ElectricalUnit Terminals

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM
  1. Remove the front console panel, see BODY.
  2. Remove the two mounting screws. Partially remove the stereo radio/cassette player.

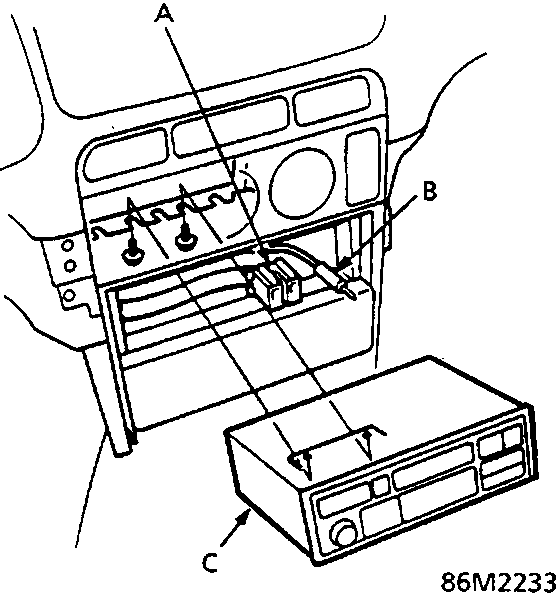

Diagram showing the removal of the stereo radio/cassette player from the dashboard, with callouts A, B, and C indicating the connector, antenna lead, and unit respectively.

A 16 – P connector
B Antenna lead
C Stereo radio/cassette player

  1. Disconnect the 16 – P connector and antenna lead, then remove the stereo radio/cassette player.

Unit Terminals

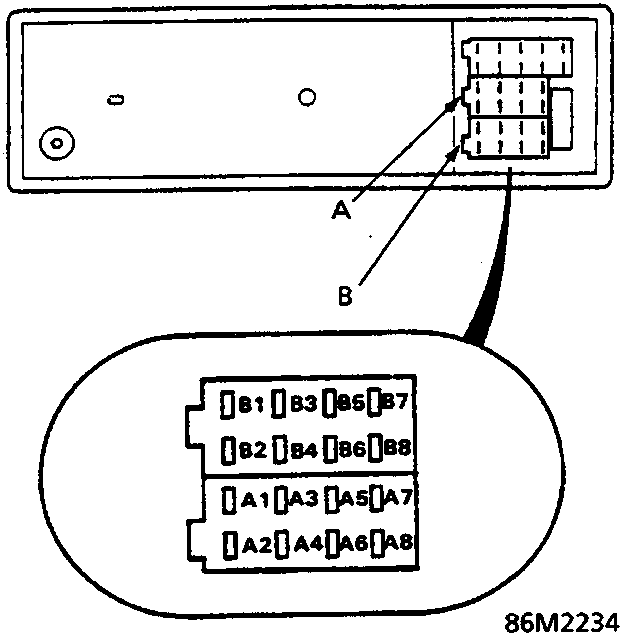

Diagram of the rear of the stereo unit showing two sockets labeled A and B, with a detailed pinout diagram for an 8-pin connector block.

A Socket B
B Socket A

Terminal Wire Connects to
A1 - Not used
A2 - Not used
A3 - Not used
A4 WHT/YEL Constant power
(Tuning memory)
A5 YEL/WHT Radio – switched power
A6 RED/BLK Lights – on signal
A7 YEL/RED ACC
A8 BLK Earth
B1 RED/YEL Right rear speaker (+)
B2 BRN/WHT Right rear speaker (-)
B3 RED/GRN Right front speaker (+)
B4 BRN/BLK Right front speaker (-)
B5 BLU/GRN Left front speaker (+)
B6 GRY/BLK Left front speaker (-)
B7 BLU/YEL Left rear speaker (+)
B8 GRY/WHT Right rear speaker (-)
