Distributor Top End Inspection

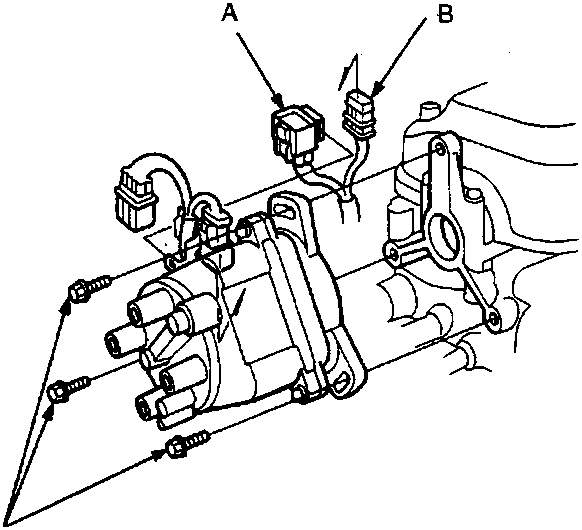

86M 2039

• A 8-P connector
• B 2-P connector
• C Mounting bolts

1. Remove the 2-P and 8-P connectors from their brackets, and disconnect them.
2. Disconnect the ignition wires from the distributor cap.
3. Remove the distributor mounting bolts, then remove the distributor from the cylinder head.

Distributor Top End Inspection

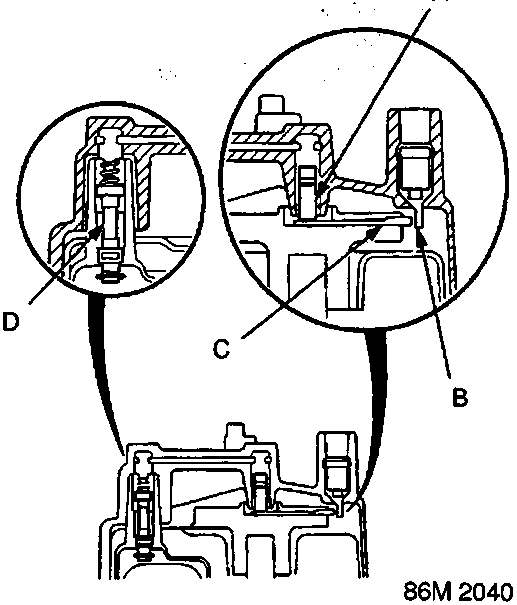

86M 2040

• A Carbon point
• B Distributor cap terminal
• C Distributor rotor terminal
• D Contact point

1. Check for rough or pitted rotor and cap terminals.
2. Scrape or file off the carbon deposits and smooth with an oil stone or fine grade glass paper.
3. Check the distributor cap for cracks, wear, and damage. If necessary, clean or replace it.
