Components

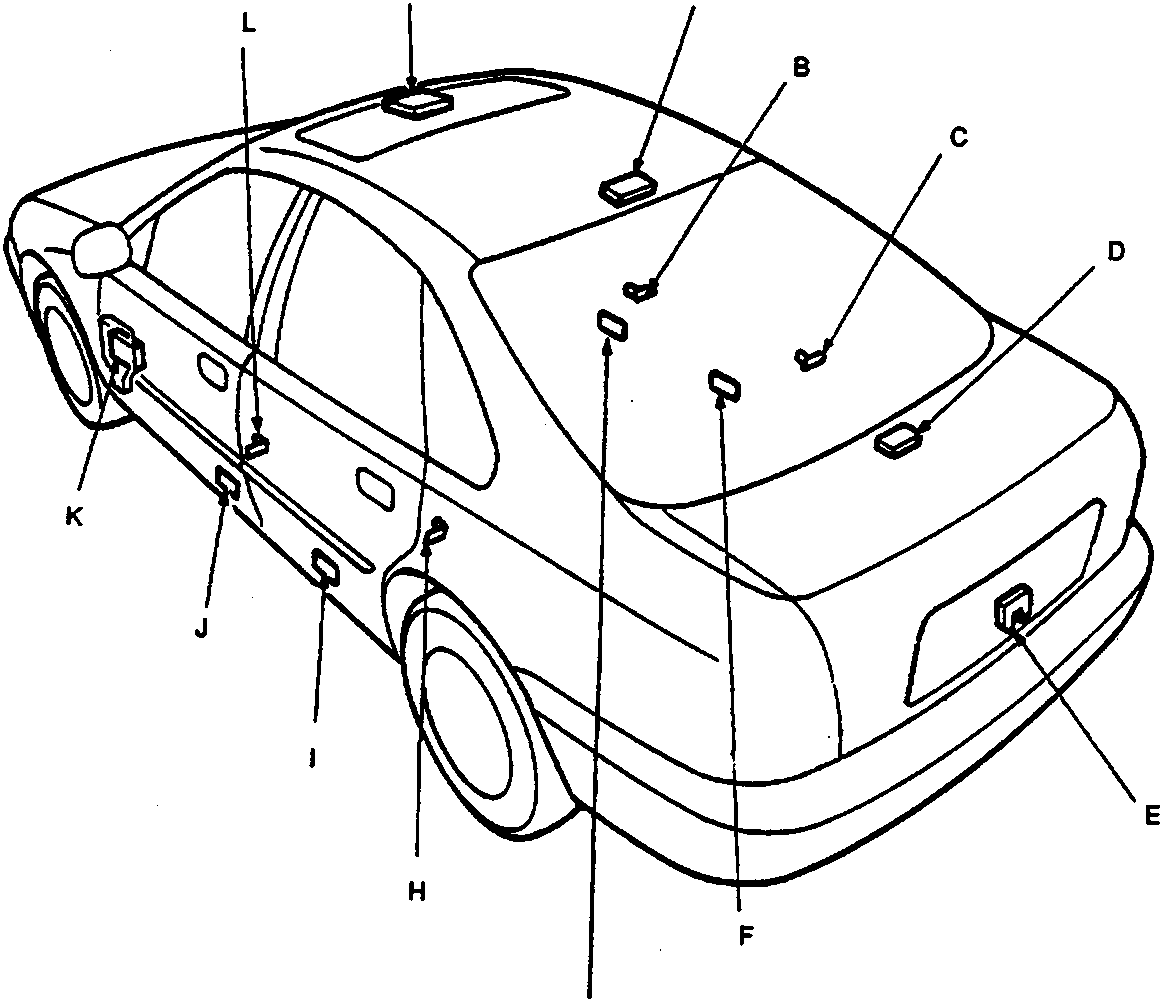

86M 2181

A	Rear interior light	H	Left rear door switch
B	Right Front door switch	I	Left rear courtesy light
C	Right rear door switch	J	Left front courtesy light
D	Boot Light	K	Entry light timer circuit
E	Boot latch switch	L	Driver's door switch
F	Right rear courtesy light	M	Front interior light
G	Front courtesy light
