18 · Electrical

Rear Speaker Replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Rear Speaker Replacement
ElectricalRear Speaker Replacement

Rear Speaker Replacement

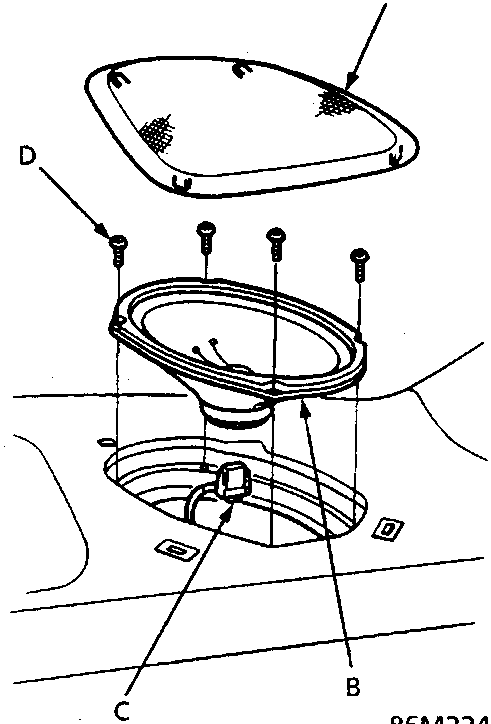

Exploded view of rear speaker assembly showing cover, speaker unit, connector and screws
  1. A Speaker cover
  2. B Speaker
  3. C 2-P connector
  4. D Screws
  5. Remove the speaker cover.
  6. Remove the four screws from the speaker, then disconnect the 2-P connector and remove the speaker.

Tweeter Replacement

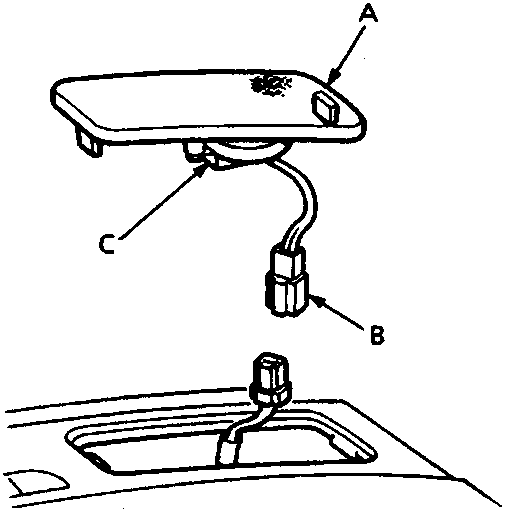

Exploded view of tweeter assembly showing speaker cover, 2-P connector and tweeter unit
  1. A Speaker cover
  2. B 2-P connector
  3. C Tweeter
  4. Carefully pry the speaker cover with the tweeter out from the dashboard, then disconnect the 2-P connector from the tweeter.
  5. If it is necessary, remove the two screws, then separate the tweeter from the speaker cover.
