Left Rear Window Switch

Make

Rover

Model

600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Repairs › Left Rear Window Switch

ElectricalLeft Rear Window Switch · page 1 of 3

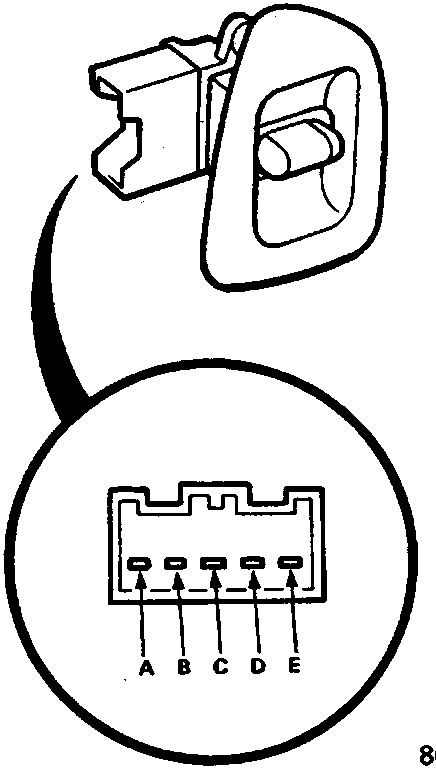

Left Rear Window Switch

1. Remove the rear window switch from the armrest.

Terminal Position	A	B	C	D	E
UP	■—■
OFF		■—■—■—■	■—■	■—■	■
DOWN	■—■—■—■	■—■	■—■	■

2. Check for continuity between the terminals in each switch position according to the table.

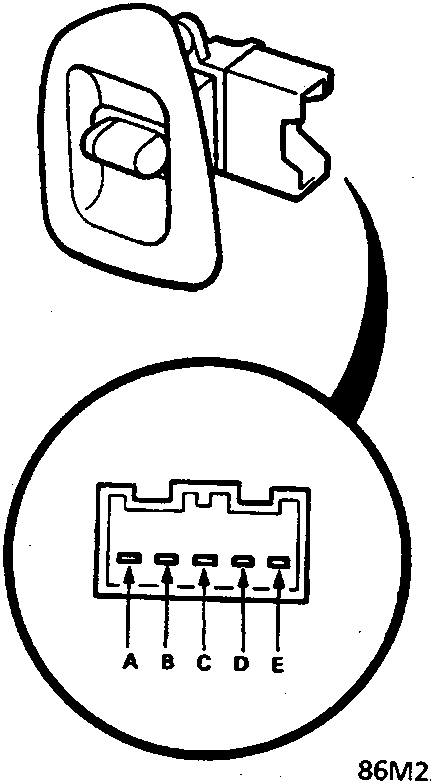

Right Rear Window Switch

1. Remove the rear window switch from the armrest.

Terminal Position	A	B	C	D	E
UP		■—■—■—■			■
OFF	■—■—■—■	■—■—■—■			■
DOWN	■—■		■—■	■—■

2. Check for continuity between the terminals in each switch position according to the table.

18 Electrical
