Main Switch Test

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Main Switch Test
ElectricalMain Switch Test · page 1 of 2

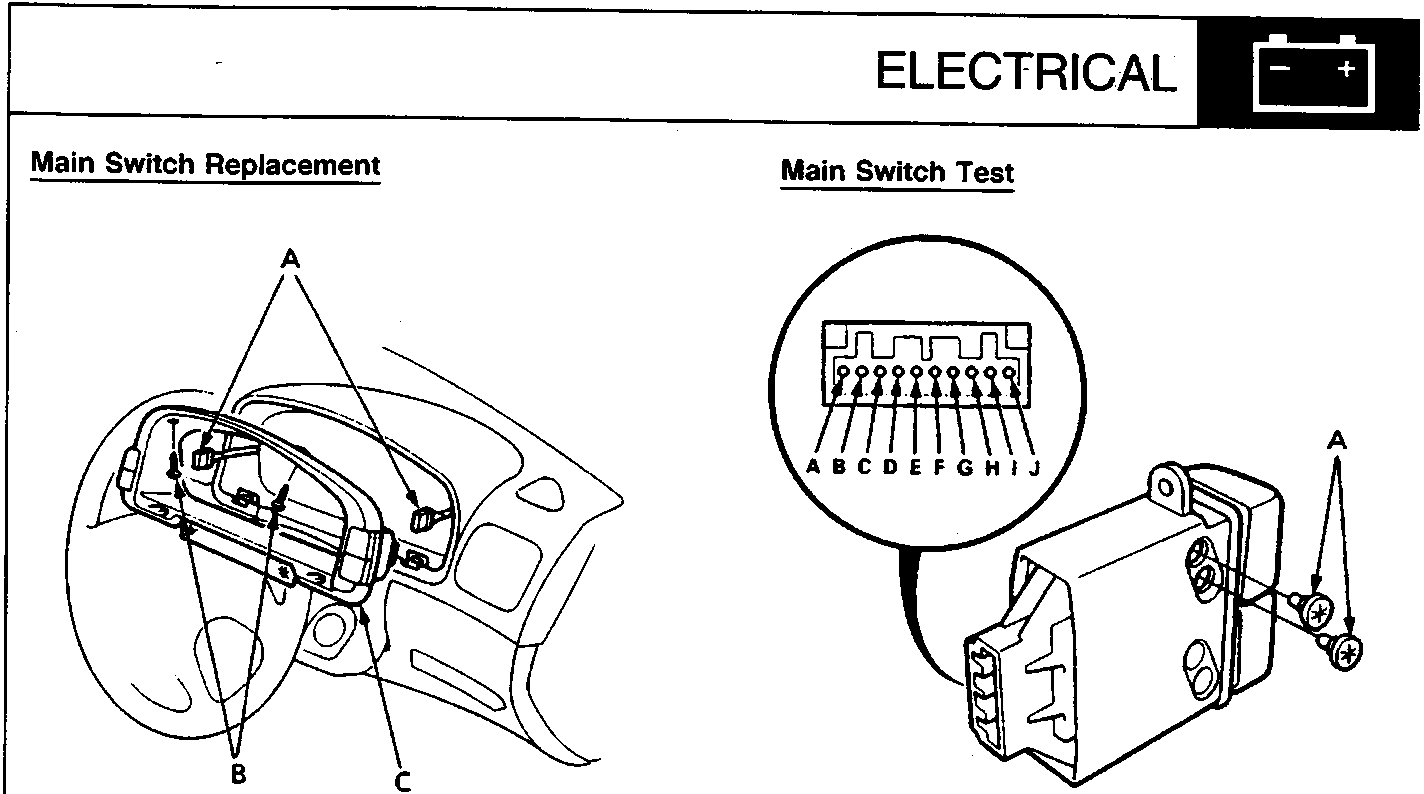

Diagram showing the location of connectors, screws and instrument panel around the steering column

86M3246

  1. A Connectors
  2. B Screws
  3. C Instrument panel
  4. Remove 2 screws and release the instrument panel from its fitted position.
  5. Disconnect the 2 connectors from the switches.

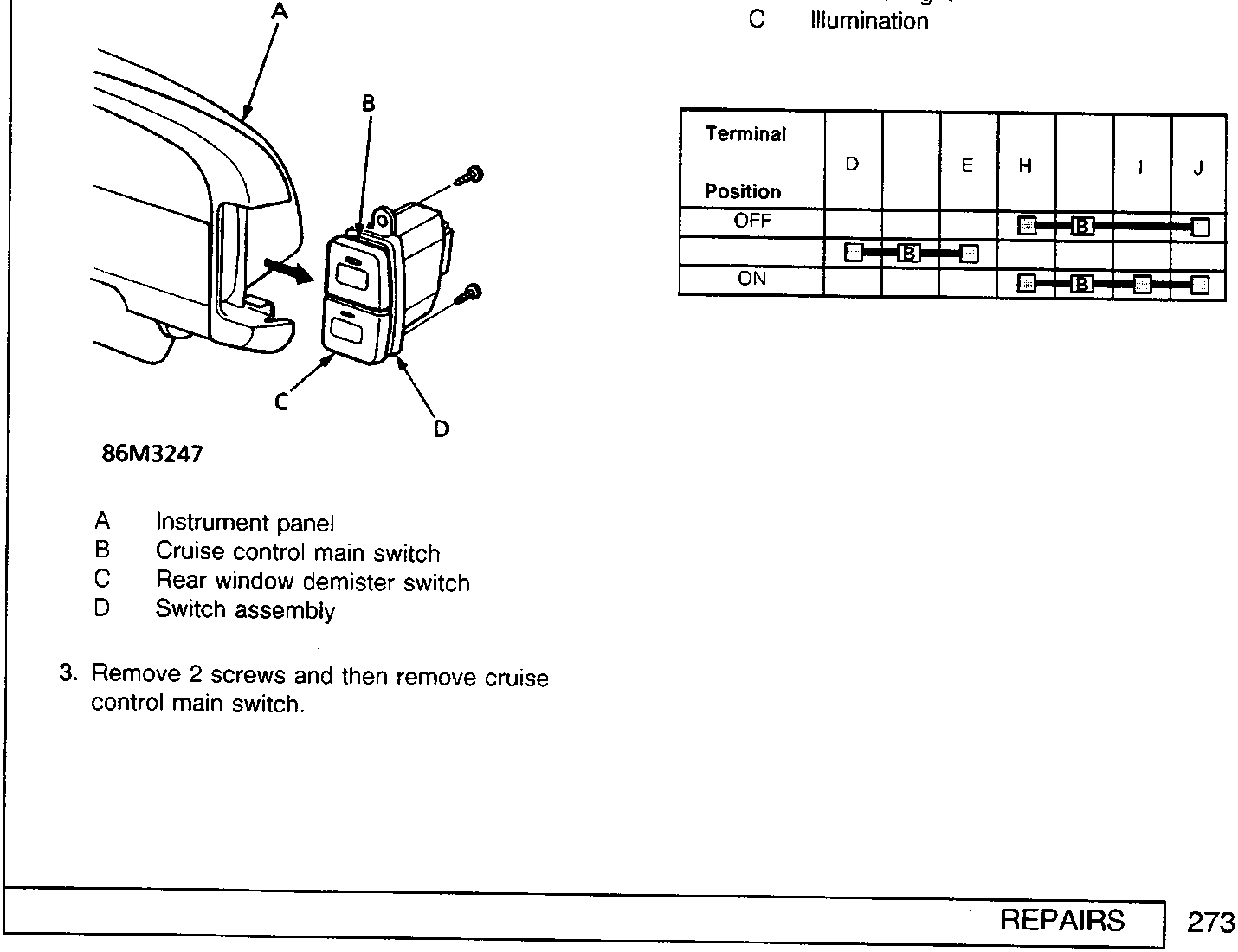

Diagram showing the cruise control main switch, rear window demister switch and switch assembly on the instrument panel

86M3247

  1. A Instrument panel
  2. B Cruise control main switch
  3. C Rear window demister switch
  4. D Switch assembly
  5. Remove 2 screws and then remove cruise control main switch.

Main Switch Test

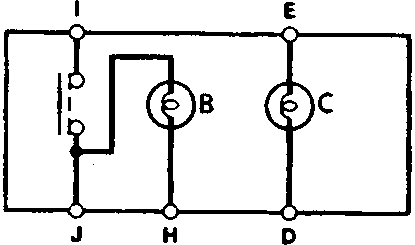

Circuit diagram for the main switch test showing terminals A, B, C, D, E, H, I, J and bulbs

86M3248

  1. A Bulbs (0.8W x 2)
  2. B Indicator light
  3. C Illumination
TerminalDEHIJ
Position
OFFBB
BB
ONBB
BB
