18 · Electrical

Original page (page 5 of 5)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Repairs

ElectricalOriginal page · page 5 of 5

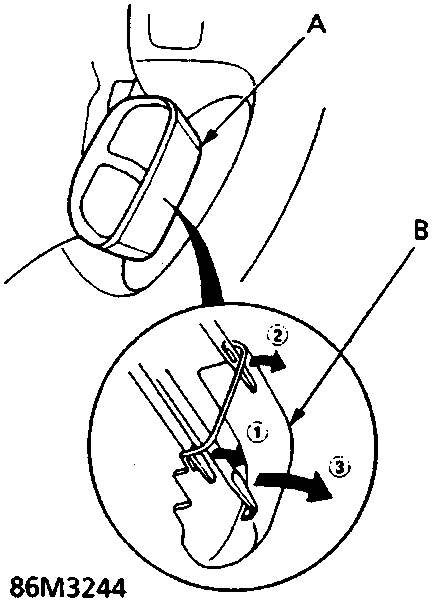

Diagram of the steering wheel stalk showing the SET/RESUME switch and cover removal sequence with callout numbers 1, 2, and 3.

A SET/RESUME switch B SET/RESUME switch cover 8. Carefully remove SET/RESUME switch cover in sequence shown.

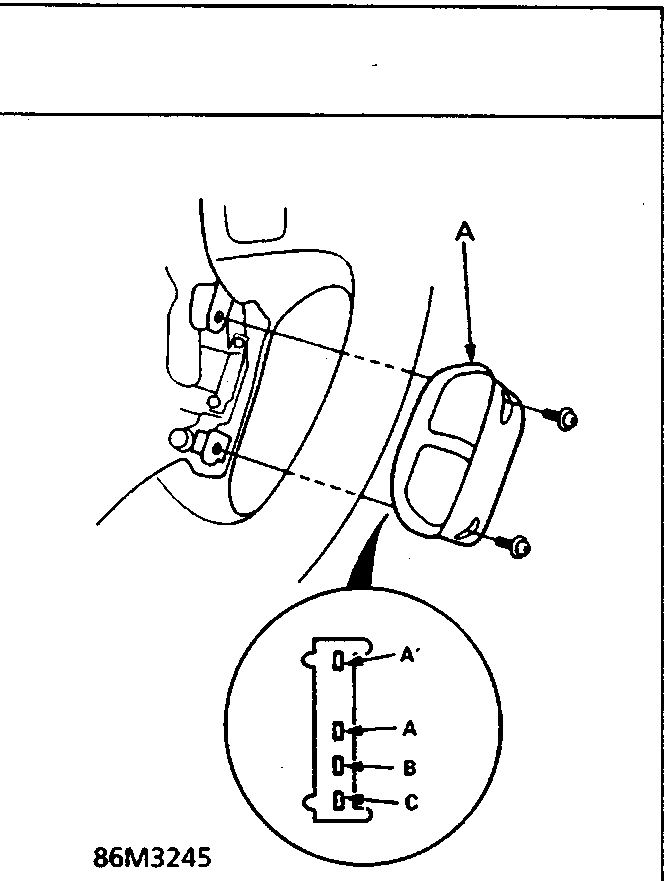

Diagram showing the removal of the SET/RESUME switch from the stalk, with a close-up circle detailing terminals A', A, B, and C.

A SET/RESUME switch 9. Remove 2 screws and the SET/RESUME switch.

Terminal		A	A'	B	C
Position
OFF		■—■
SET (ON)		■—■—■—■
RESUME (ON)		■—■—■

10. Check for continuity between the terminals in each position according to table. ● If there is no continuity in one or both positions, replace switch. ● If there is continuity as table, replace cable reel.
