ElectricalIgnition Coil Test · page 1 of 3
  1. Check the BLU wire between the tachometer and the ICM.
  2. If all tests are normal, replace the ICM.

Ignition Coil Test

  1. With the ignition switch OFF, remove the distributor cap.

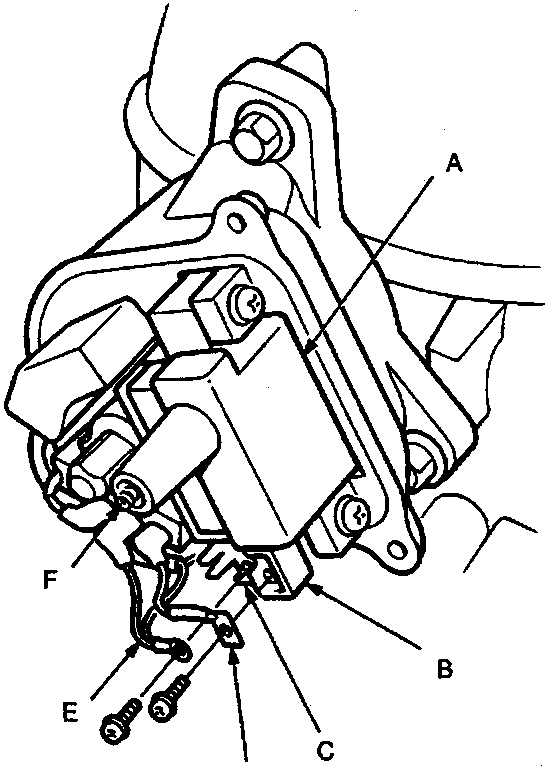

Diagram of the ignition coil assembly showing labeled components A through F, including terminals, wires, and the secondary winding terminal.

86M 2034

  • A Ignition coil
  • B Terminal B (−)
  • C Terminal A (+)
  • D WHT/BLU wire
  • E BLK/YEL wire
  • F Secondary winding terminal
  1. Disconnect the BLK/YEL and WHT/BLU wires from the terminals by removing the two screws.
