Ignition Coil Test (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalIgnition Coil Test · page 3 of 3

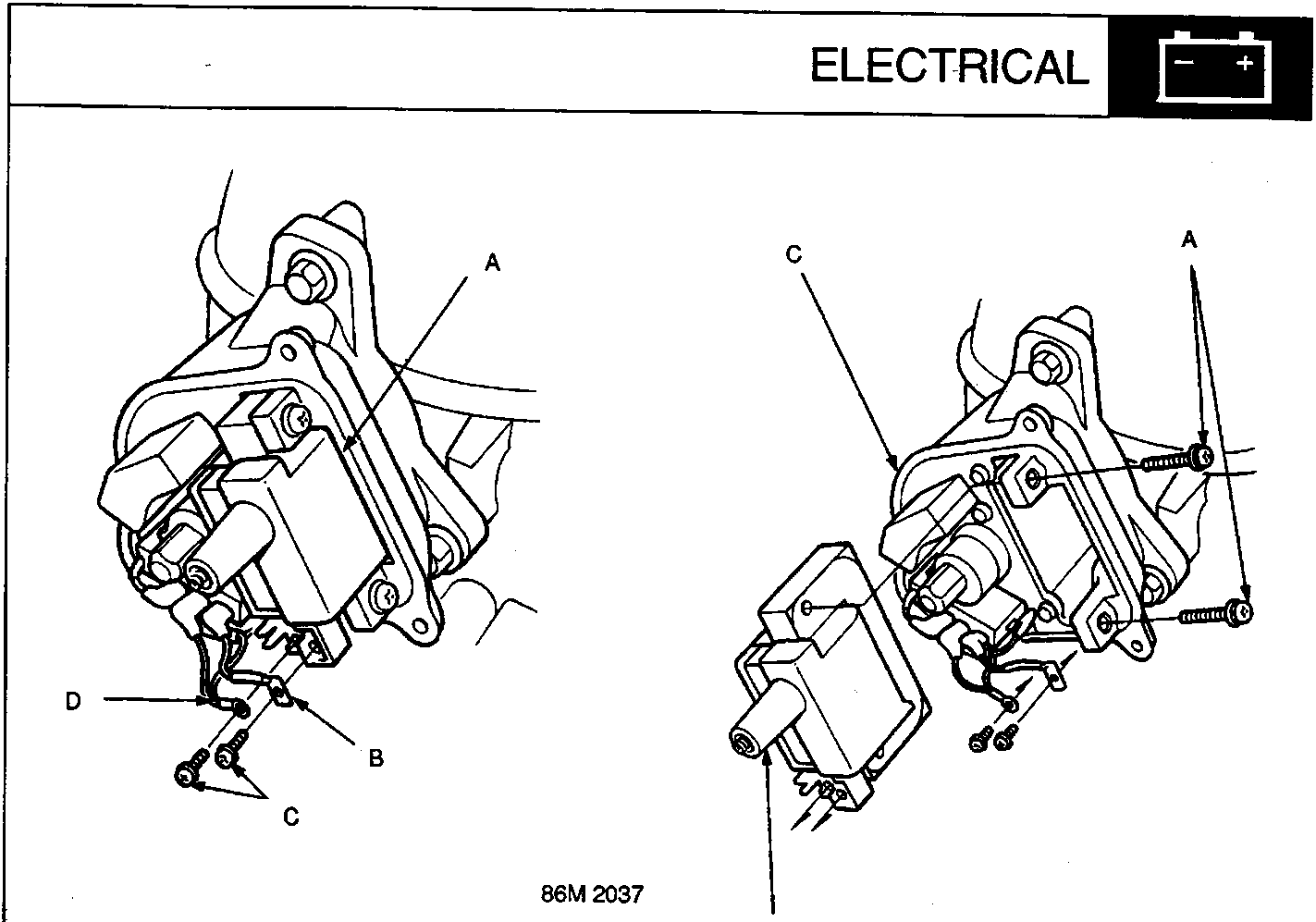

Diagram showing ignition coil, wires, and screws with labels A, B, C, D

86M 2037

  • A Ignition coil
  • B WHT/BLU wire
  • C Screws
  • D BLK/YEL wire
  1. Disconnect the BLK/YEL and WHT/BLU wires from the terminals by removing the two screws.

Diagram showing screws, ignition coil, and distributor housing with labels A, B, C

86M 2038

  • A Screws
  • B Ignition coil
  • C Distributor housing
  1. Remove the two screws and slide the ignition coil out of the distributor housing.
