Hazard Warning Switch Removal

CAUTION: Be careful not to damage the consoles.

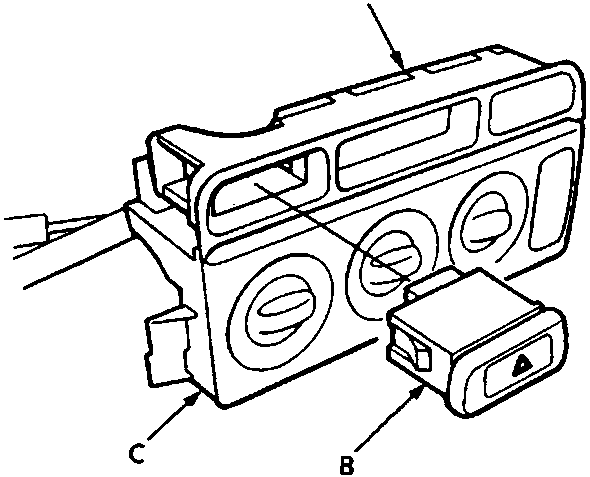

Figure
  1. A Clock
  2. B Hazard warning switch
  3. C Heater control panel assembly
  4. Remove the rear console panel, see BODY
  5. Remove the front console panel, see BODY
  6. Remove the heater control panel assembly, see HEATING & VENTILATION.
  7. Ease the hazard warning switch from the heater control panel.
  8. Refit is reversal of removal procedure.

Hazard Warning Switch Test

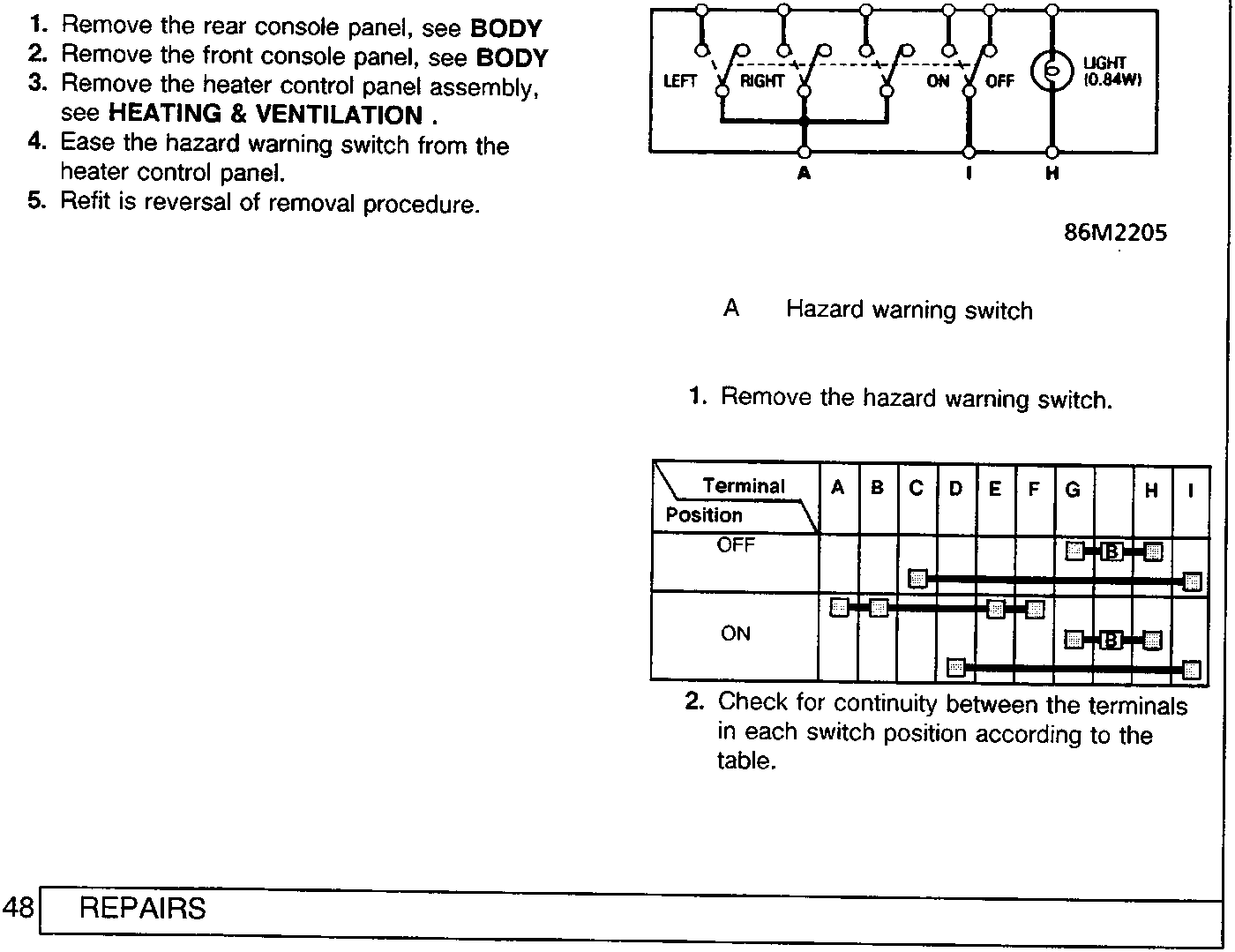

Figure

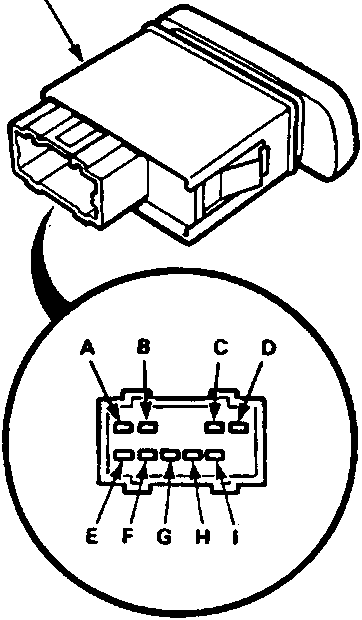

Figure
  1. A Hazard warning switch
  2. Remove the hazard warning switch.
  3. Check for continuity between the terminals in each switch position according to the table.
Terminal
Position
ABCDEFGHI
OFF
ON

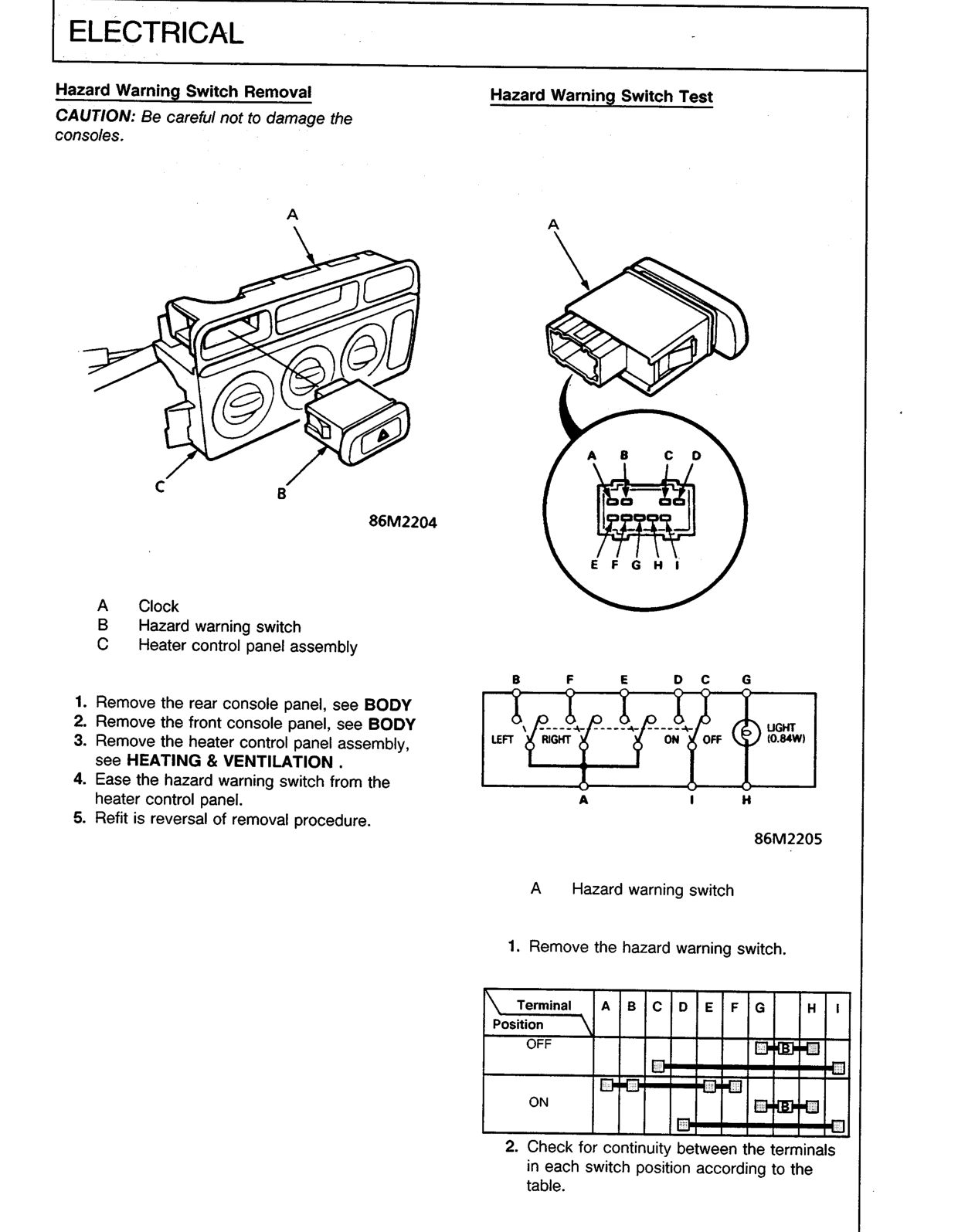

Original page
