WIPER/WASHERS

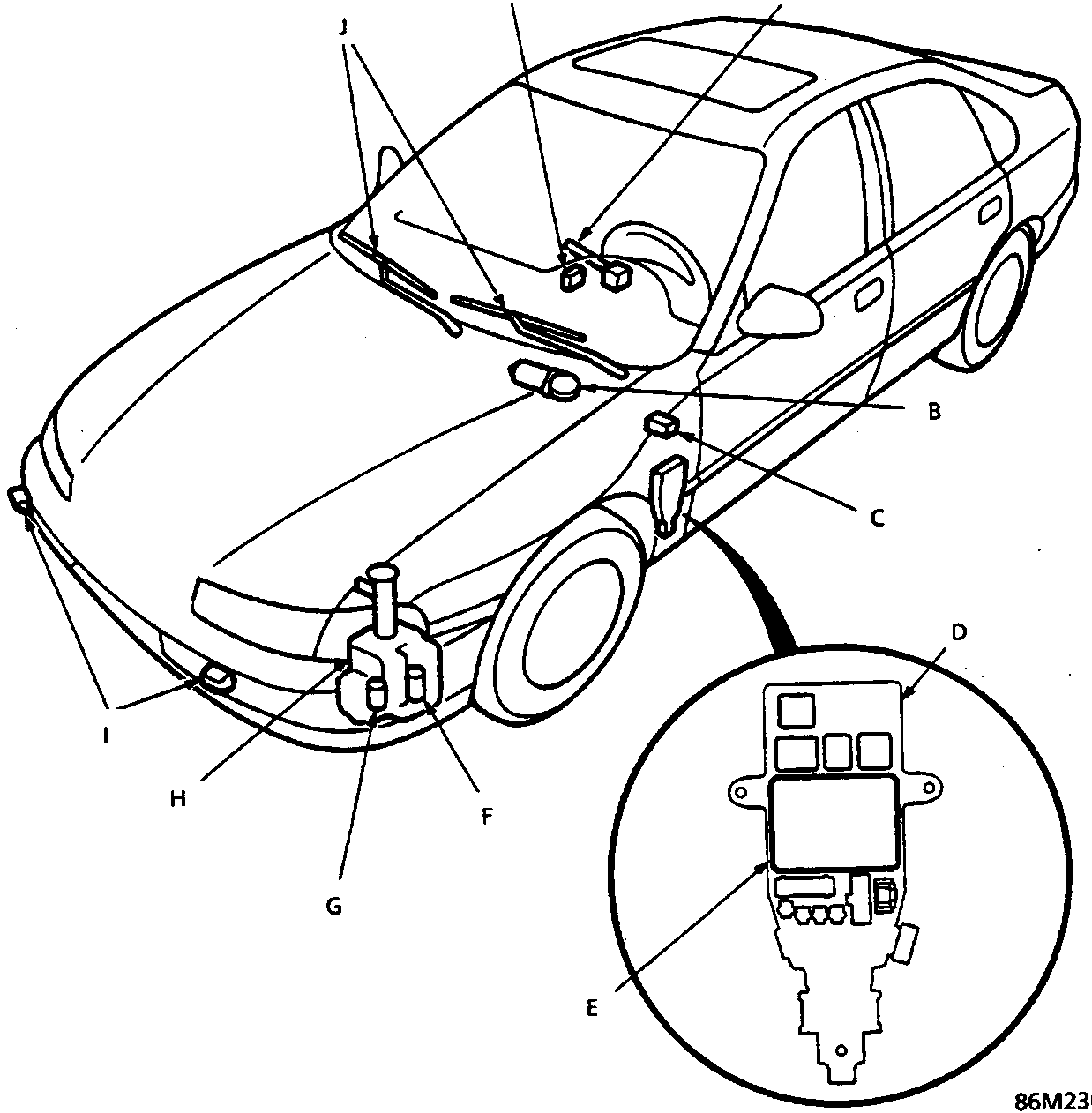

Component Location
Note: LHD type is shown, RHD type is similar.
| A | Windscreen wiper/washer switch |
| B | Windscreen wiper motor assembly |
| C | Headlight washer control unit |
| D | Passenger compartment fuse relay box |
| E | Combined operation wiper/washer circuit |
| F | Headlight washer motor |
| G | Windscreen washer motor |
| H | Washer fluid reservoir |
| I | Headlight washer nozzles |
| J | Windscreen wiper arms/blades |
| K | Headlight washer switch |
