Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Wiper/washers (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalWiper/washers · page 3 of 3

Wiper/washers (page 3 of 3) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

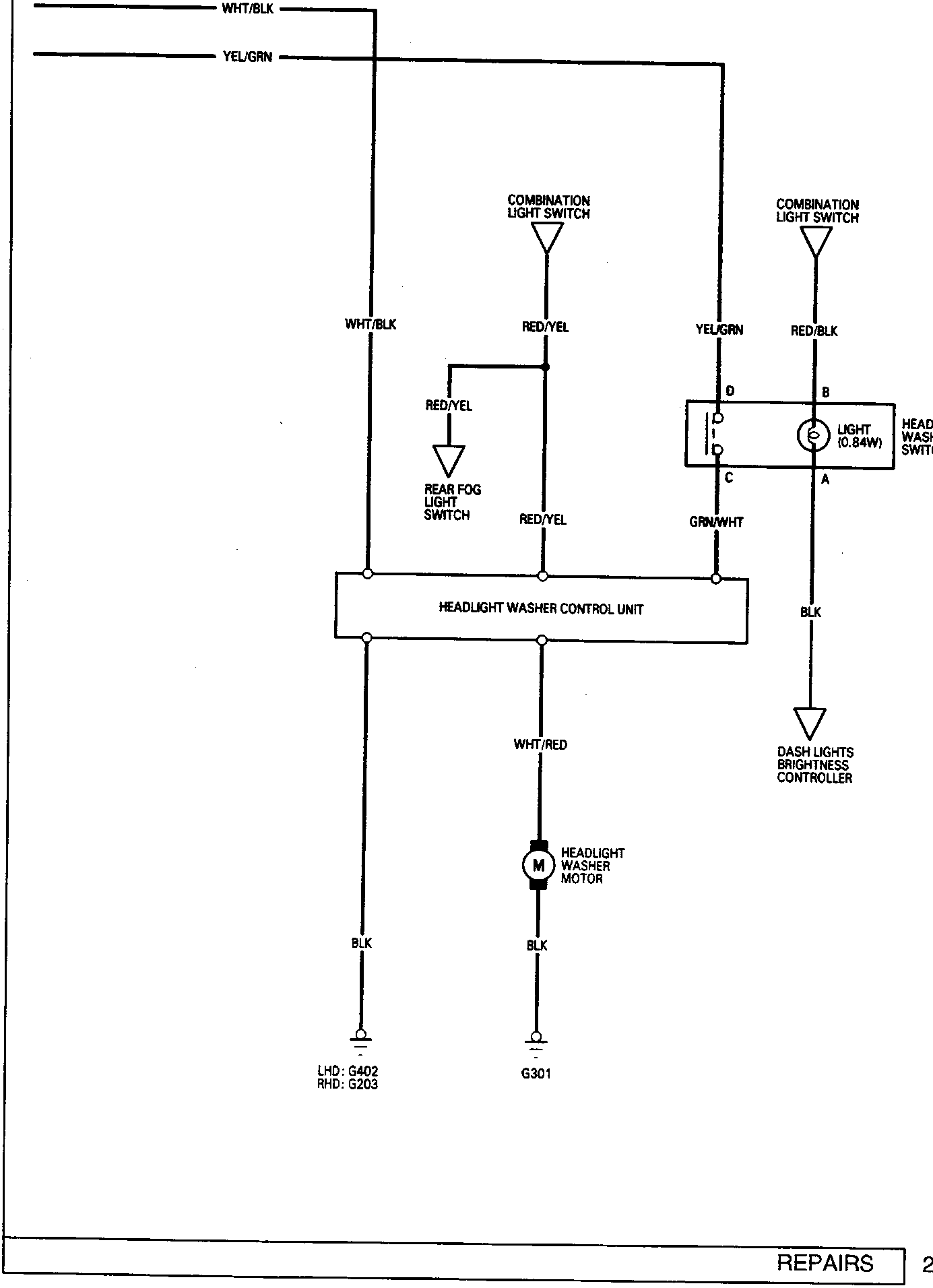

Schematic wiring diagram for the headlight washer system showing the combination light switch, rear fog light switch, headlight washer control unit, headlight washer motor, dash lights brightness controller, and headlight washer switch with wire color codes.
