Repairs › Circuit Diagram
ElectricalCircuit Diagram · page 1 of 2

Circuit Diagram

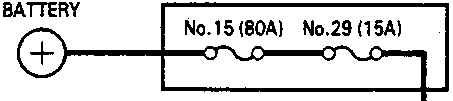

Circuit diagram showing battery connected to under-hood fuse/relay box (No.15 (80A), No.29 (15A)), leading via WHT/BLU wire to combination light switch and cigarette lighter assembly with ashtray light (1.4W) and light (1.4W) components, grounded at G401 via BLK wire.

Test Replacement

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM
  1. Remove the rear console, see BODY.
  2. Remove the front console, see BODY.
  3. Disconnect the 4-P connector from the cigarette lighter.
  4. Inspect the connector terminals to be sure they are all making good contact.
  • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the systems.

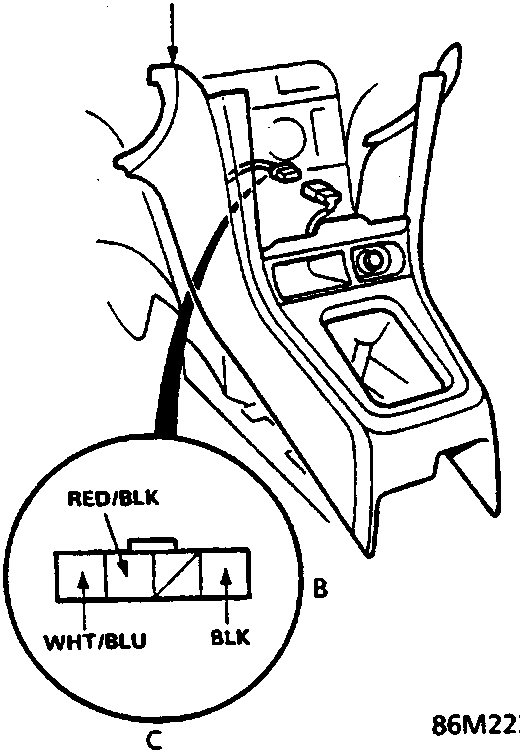

Diagram of front console area showing location of cigarette lighter connector. Detail view B shows the 4-P connector from the wire side with RED/BLK, WHT/BLU, and BLK wires.

A     Front console
B     View from wire side
C     4-P connector
