Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

86M 2155

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › 86M 2155
Electrical86M 2155 · page 1 of 2

CAUTION: Be careful not to damage the dashboard lower cover.

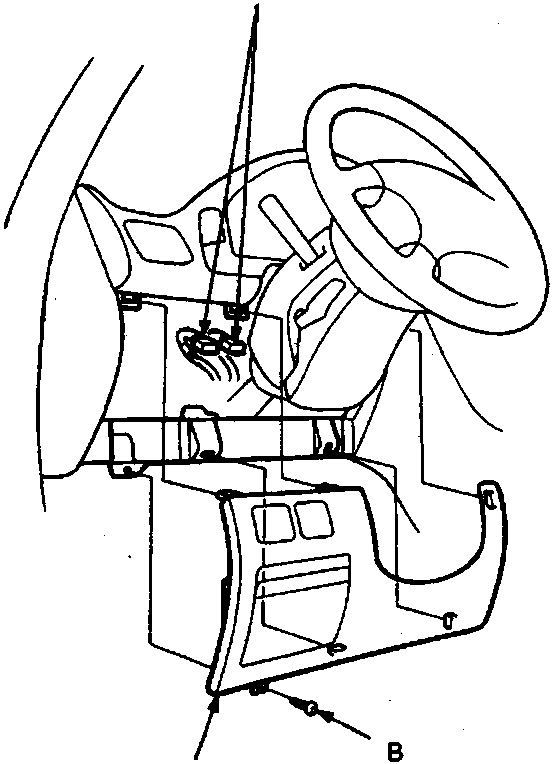

Diagram of steering column area showing connectors, screw, and dashboard lower cover with callouts A, B, C

86M 2155

  1. A Connector(s)
  2. B Screw
  3. C Dashboard lower cover
  4. Remove the screw and dashboard lower cover, then disconnect the connector(s) from the switch(es).
Close-up diagram of dashboard lower cover with headlight adjuster switch inserted, callouts A and B

86M 2156

  1. A Dashboard lower cover
  2. B Headlight adjuster switch
  3. Push the switch from behind the dashboard lower cover.
