18 · Electrical

Passenger Door Lock Actuator Test

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Passenger Door Lock Actuator Test
ElectricalPassenger Door Lock Actuator Test

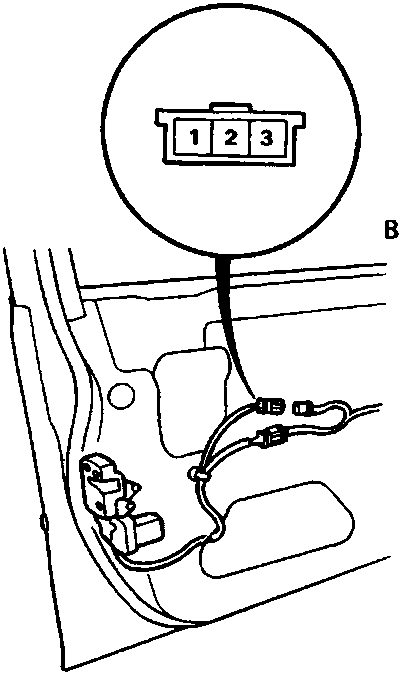

Diagram showing the driver's door lock knob switch (A) and its 3-P connector (B), with a key symbol (C) indicating the switch position.
Schematic diagram of the door lock knob switch terminals 1, 2, and 3 showing internal connections for LOCK and UNLOCK positions.

86M2275

  • A 3 – P connector
  • B View from wire side
  • C Driver’s door lock knob switch
  1. Remove the driver’s door panel see see BODY.
  2. Disconnect the 3 – P connector from the door lock knob switch.
Terminal123
Position
LOCK■ — ■
UNLOCK■ — ■ — ■

Note: LHD type is shown, RHD type is symmetrical.

  1. Check for continuity between the terminals in each switch position according to the table.

Passenger Door Lock Actuator Test

  1. Remove the passenger door panel, see BODY.

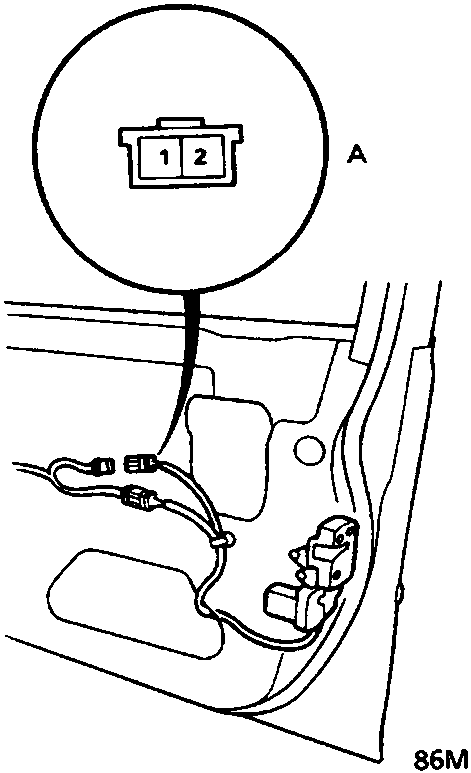

Diagram showing the passenger door lock actuator 2-P connector (A) viewed from the wire side.

86M2276

  • A View from wire side
  1. Disconnect the 2 – P connector from the door lock actuator.

Note:

  • The illustration shows the front passenger door of the LHD type, RHD type is symmetrical.
  • The rear doors are similar.
  1. Test the actuator.
Terminal12
Position
LOCK–+
UNLOCK+–

CAUTION: To prevent damage to the actuator, connect battery power only momentarily.

  1. If the actuator does not work properly, replace it.

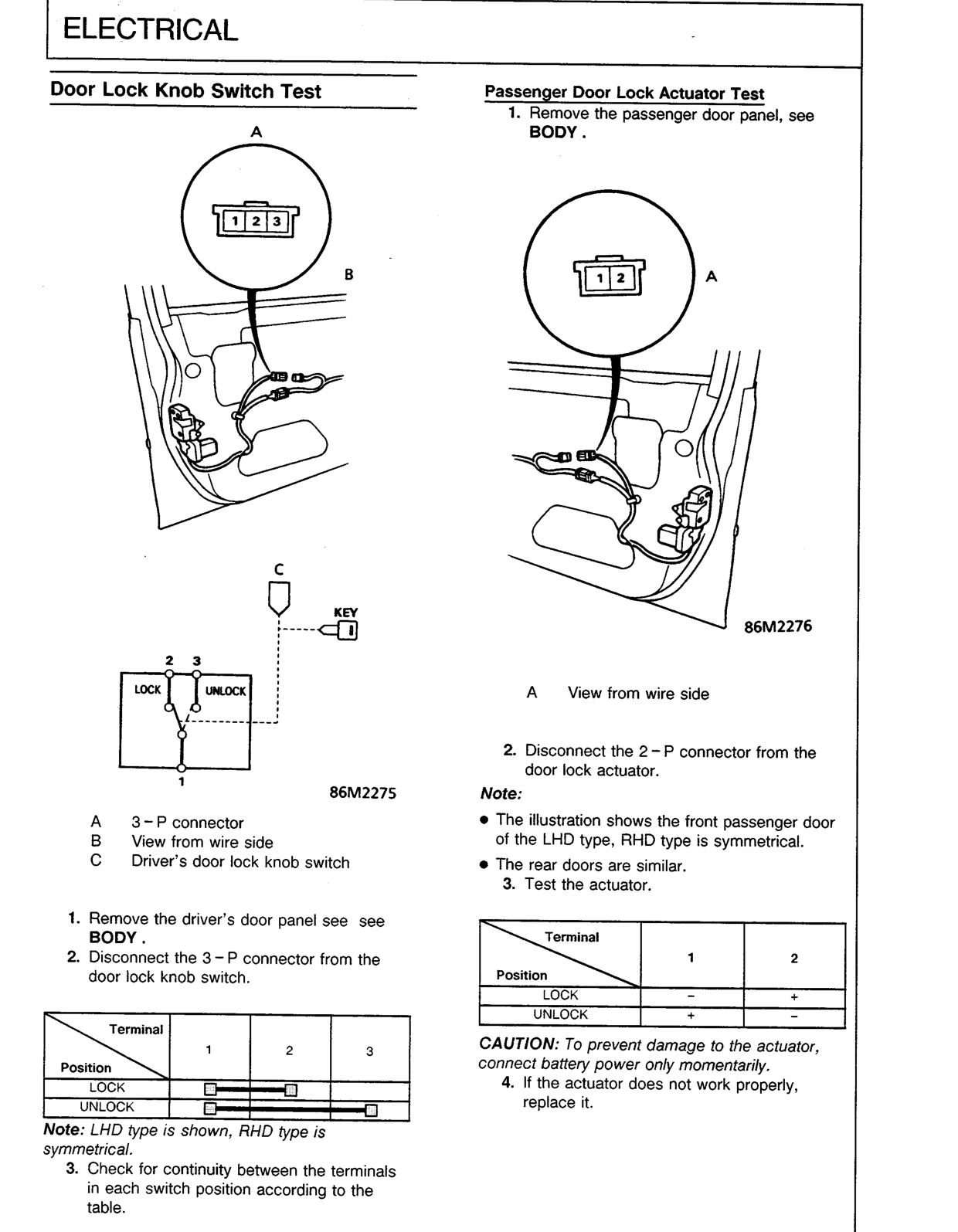

Original page
