Battery replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Battery replacement
ElectricalBattery replacement · page 1 of 2

Battery replacement

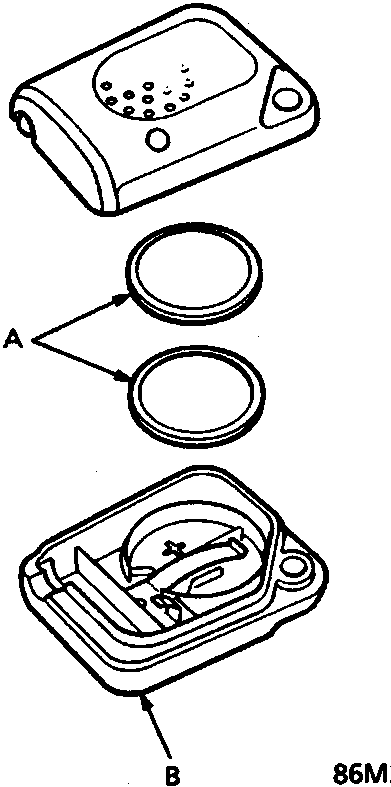

Exploded view of a transmitter showing the battery (A) and the transmitter housing (B), reference 86M2343

A Battery
B Transmitter

Disassemble the transmitter and replace the battery.

Indicator Replacement

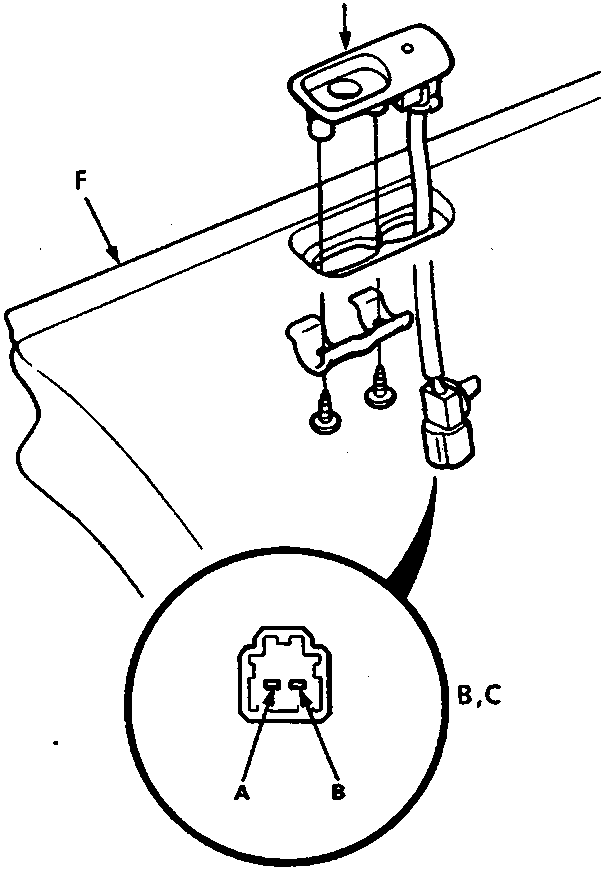

Door panel indicator assembly showing the indicator (A), door panel (F), and a close-up of the 2-P connector terminals (B, C), reference 86M2347
Circuit diagram for the indicator showing connections to the fuse (D) and security alarm control unit (E)

A Indicator
B View from terminal side
C 2–P connector
D From No. 41 (20A) fuse
E To security alarm control unit
F Door panel

  1. Remove the front door panel , see see BODY.
  2. Remove the two screws and disconnect the 2–P connector from the indicator.
  3. Remove the indicator from the door panel.
