86M 2042

Reassemble the distributor in the reverse order of disassembly.

86M 2042

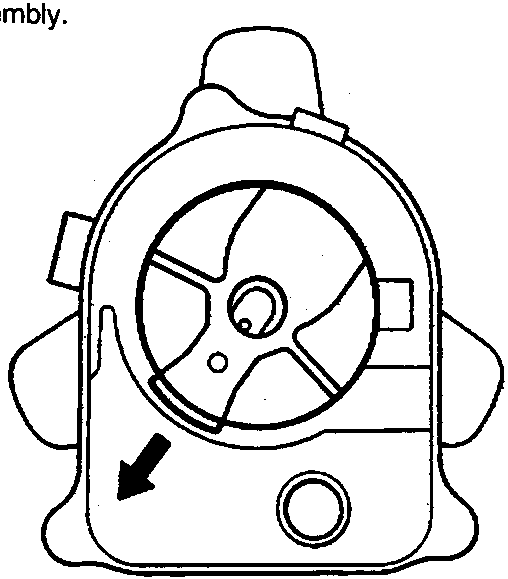

1. Install the distributor rotor, then turn it so that it faces in the direction shown (toward the No. 1 cylinder).
2. Set the thrust washer and coupling on the shaft.

86M 2043

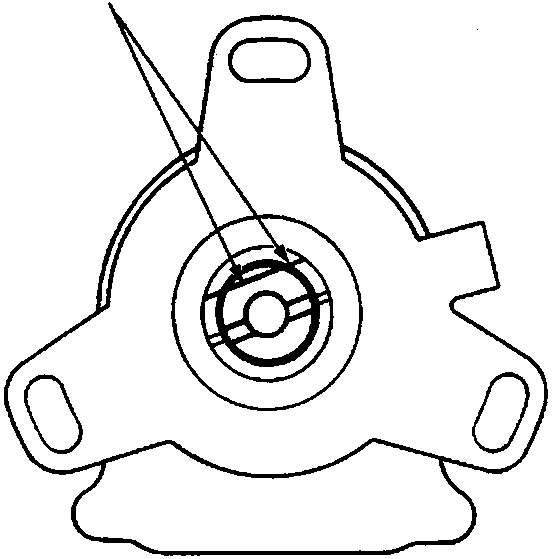

A Index mark

3. Check that the distributor rotor is still pointing toward the No. 1 cylinder, then align the index mark on the distributor housing with the index mark on the coupling.
4. Drive in the pin and secure it with the pin retainer.

Ignition Wire Inspection and Test

CAUTION: Carefully remove the ignition wires by pulling on the rubber boots. Do not bend the wires; you might break them inside.

86M 2044

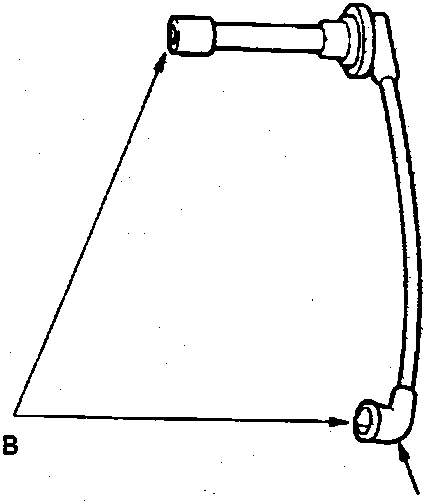

1. Check the condition of the wire terminals. If any terminal is corroded, clean it, and if it is broken or distorted, replace the wire.

86M 2045

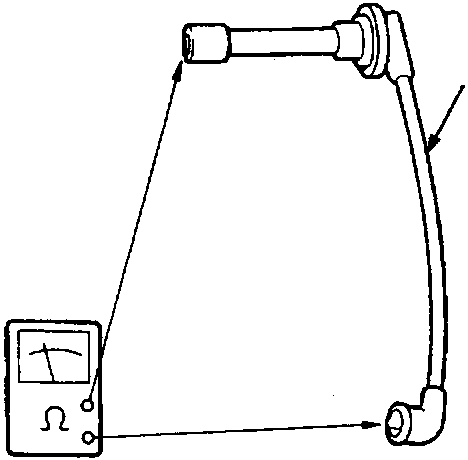

A Ignition wire

2. Connect ohmmeter probes and measure resistance.

Ignition Wire Resistance:
25 kOhms max. at 20°C (68°F)

3. If resistance exceeds 25 kOhms, replace the ignition wire.
