KEYLESS ENTRY AND SECURITY ALARM SYSTEM

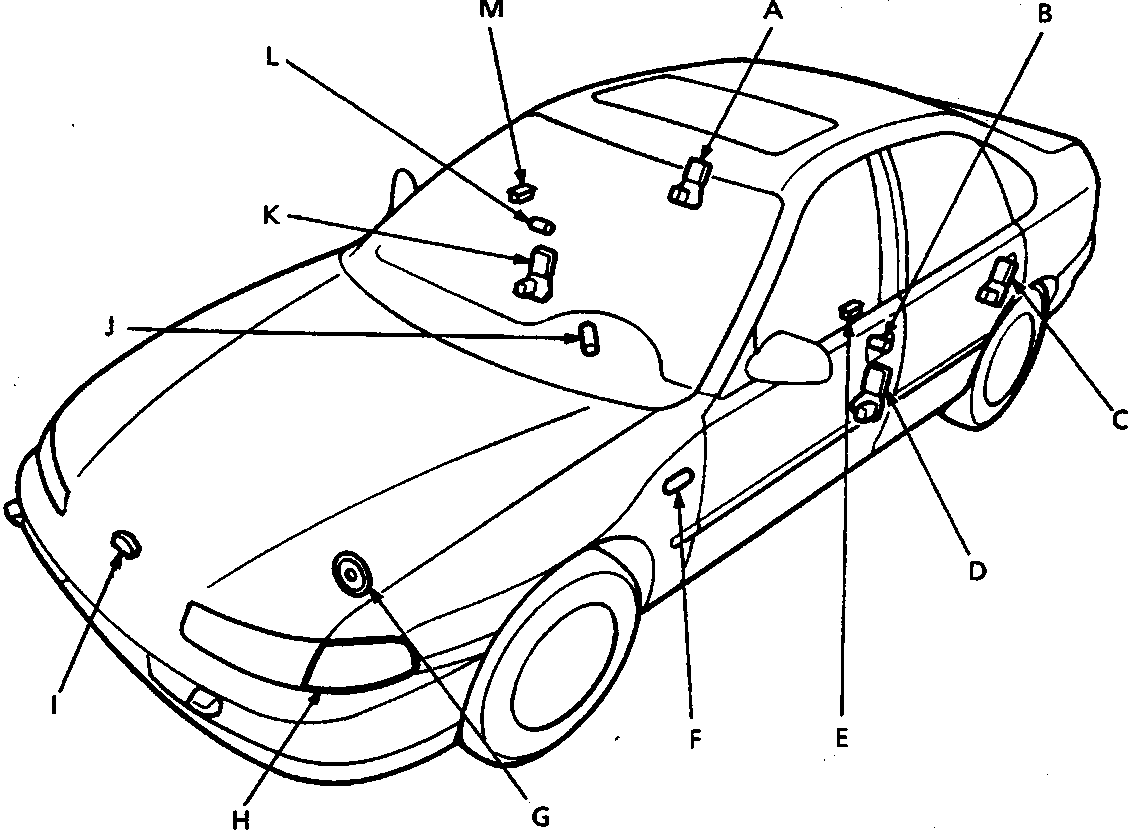

Component Location
CAUTION:
- All SRS electrical wiring harnesses are covered with yellow outer insulation.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
- Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes.
Note: LHD type is shown, RHD type is similar.
| A | Rear door lock actuator | H | Front turn indicator signal light |
| B | Driver's door key cylinder switch | I | Bonnet switch |
| C | Rear door lock actuator | J | Ignition switch |
| D | Driver's door lock actuator | K | Front passenger door lock actuator |
| E | Security indicator | L | Front passenger door key cylinder switch |
| F | Side turn indicator signal light | M | Security indicator |
| G | Security horn |
