ElectricalKeyless entry and security alarm system · page 2 of 3

Note: LHD type is shown, RHD type is similar.

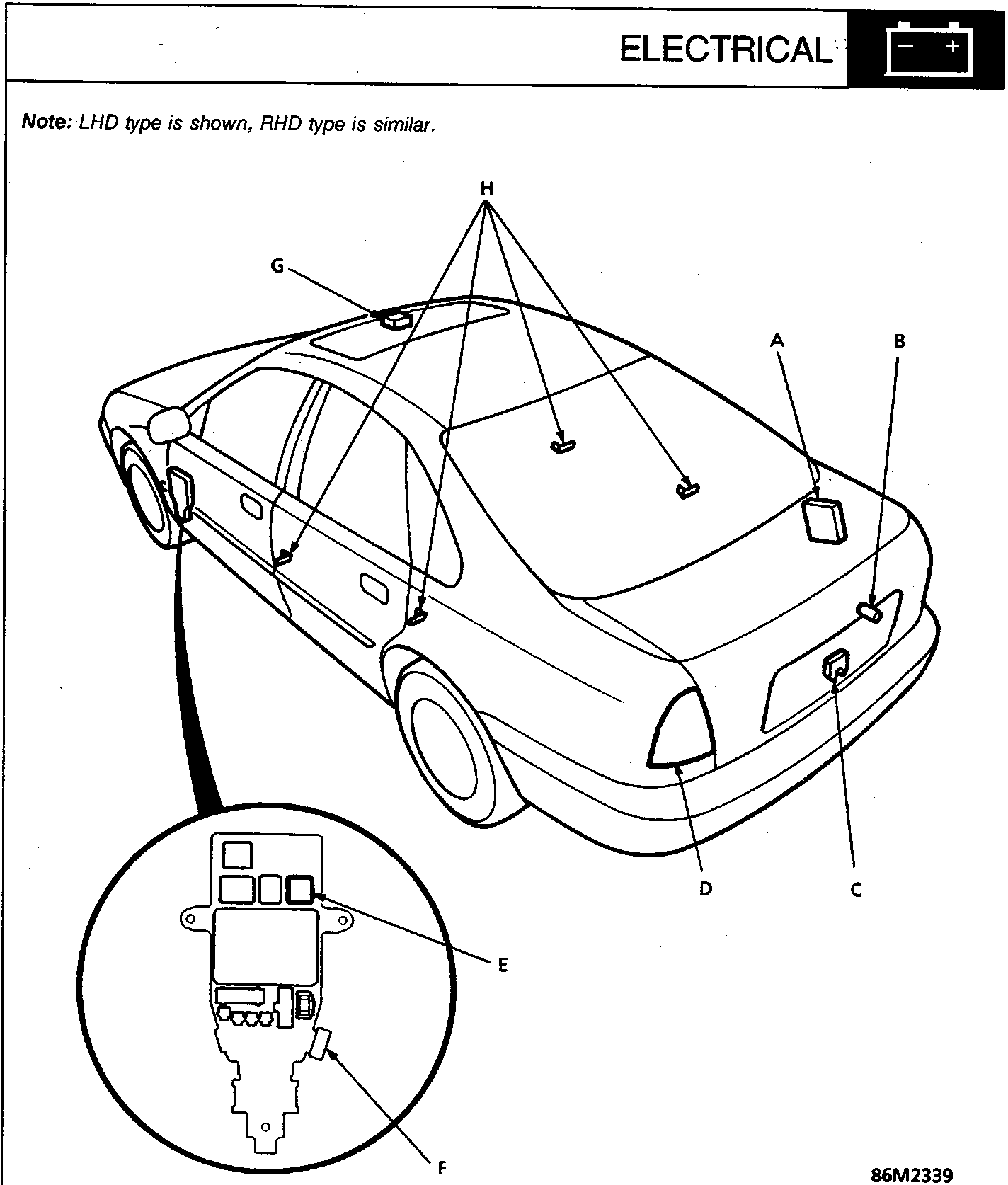

Diagram of car rear showing security system components including security control switch, boot key cylinder switch, boot switch, rear indicator light, starter cut relay, under dash relay, receiver unit, and door switches. Includes a detailed inset of the relay box.
  1. A Security control switch
  2. B Boot key cylinder switch
  3. C Boot switch
  4. D Rear indicator light
  5. E Starter cut relay
  6. F Under dash relay
  7. G Receiver unit
  8. H Door switches
