Ignition Key Light Test

Ignition Key Light Test

Note: See entry light timer circuit input test.

1. Remove the dashboard lower cover .

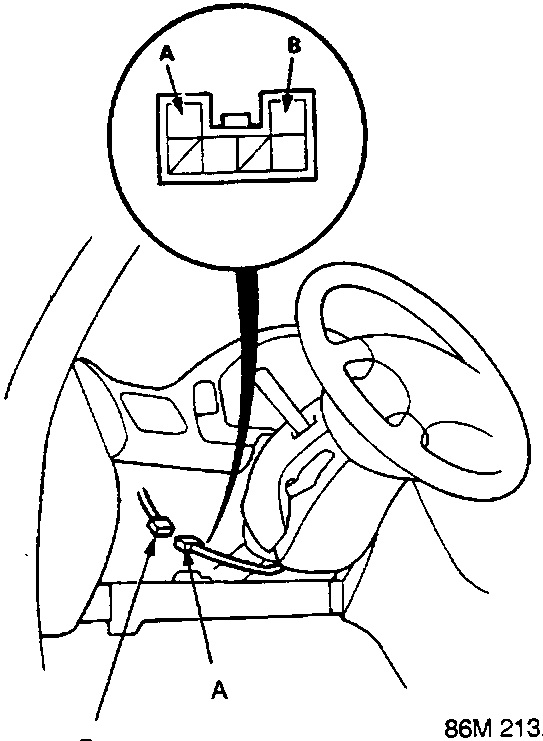

4. A 6 – P connector
5. B Main wire harness

2. Disconnect the 6 – P connector from the main wire harness.
3. Check for continuity between the A and B terminals.

If there is no continuity, check for:

• a blown bulb of the ignition key light.
• an open in the wire.

Ignition Key Light Replacement

1. Remove the steering column covers.

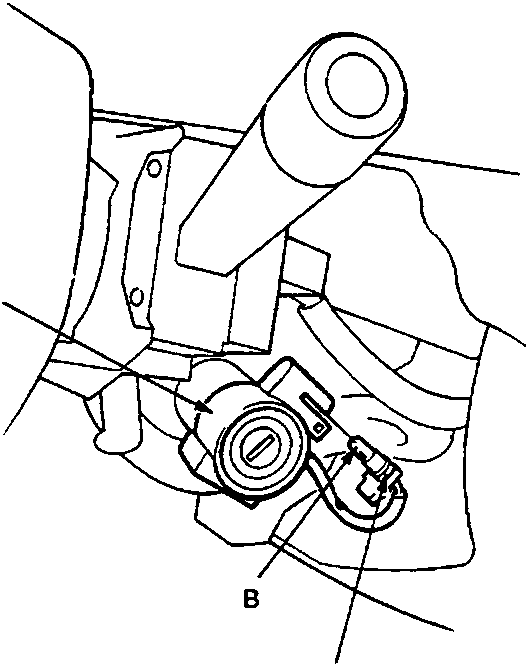

4. A Ignition key light housing
5. B Ignition key light bulb (1.4W)
6. C Socket

2. Remove the bulb/socket from the key light housing by turning the socket 45 degrees anti – clockwise.
