18 · Electrical

Description

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Description
ElectricalDescription · page 1 of 4

Description

This system makes it possible to close the windows and the sun roof from outside the car. To activate the system:

  1. Insert the key into the driver’s door lock.
  2. Turn the key to position LOCK.
  3. Keep the key in this position for at least one second.

Operating Conditions:

  • The system works only with the driver’s door lock.
  • You have to keep the key in LOCK for one second to start the first closing operation.
  • The system works only as long as you keep the key in LOCK. When you release the key, the system will stop immediately. Turning the key back to LOCK will reactivate the system.
  • The system works even when the main switch in the master power window switch is OFF.
  • The system will stop immediately if the master power window switch or one of the rear window switches is pushed.

Closing Sequence:

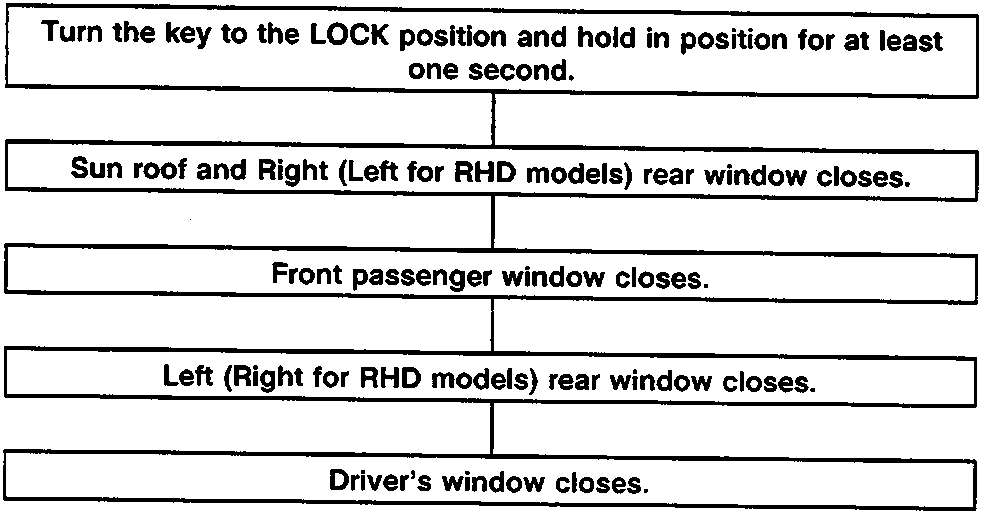

Flowchart showing the sequence of window and sunroof closure steps
Turn the key to the LOCK position and hold in position for at least one second.
Sun roof and Right (Left for RHD models) rear window closes.
Front passenger window closes.
Left (Right for RHD models) rear window closes.
Driver’s window closes.
