Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Description (page 2 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDescription · page 2 of 4

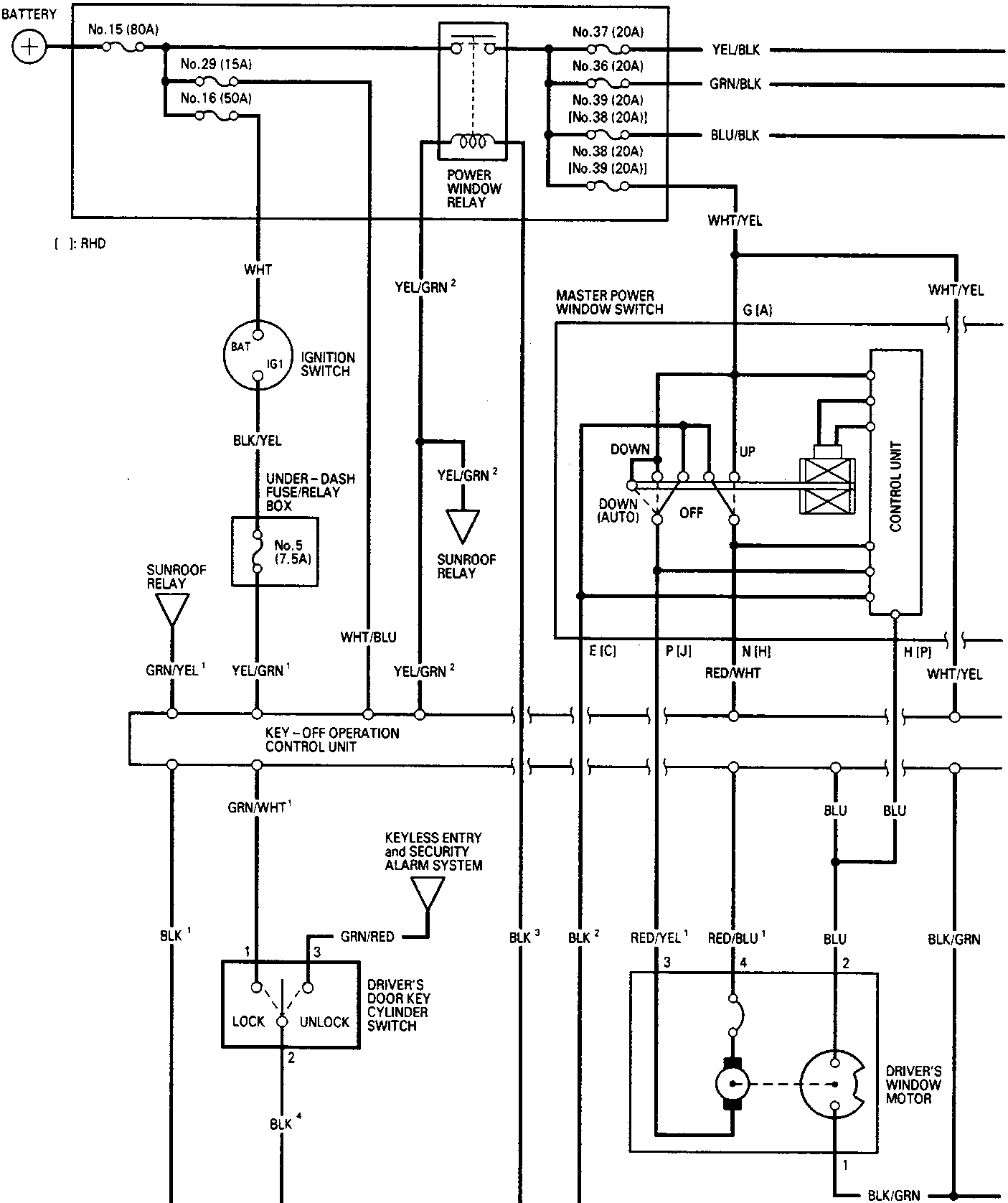

Electrical circuit diagram showing connections between the battery, under-hood fuse/relay box, ignition switch, sunroof relay, master power window switch, key-off operation control unit, driver's door key cylinder switch, and driver's window motor. Includes wire color codes, fuse ratings, and ground points G501, G451, G203, G201.
Under-hood fuse/relay box, ignition switch, sunroof relays, master power window switch, key-off operation control unit, driver's door key cylinder switch, and driver's window motor wiring.
