Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Description (page 3 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDescription · page 3 of 4

Description (page 3 of 4) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

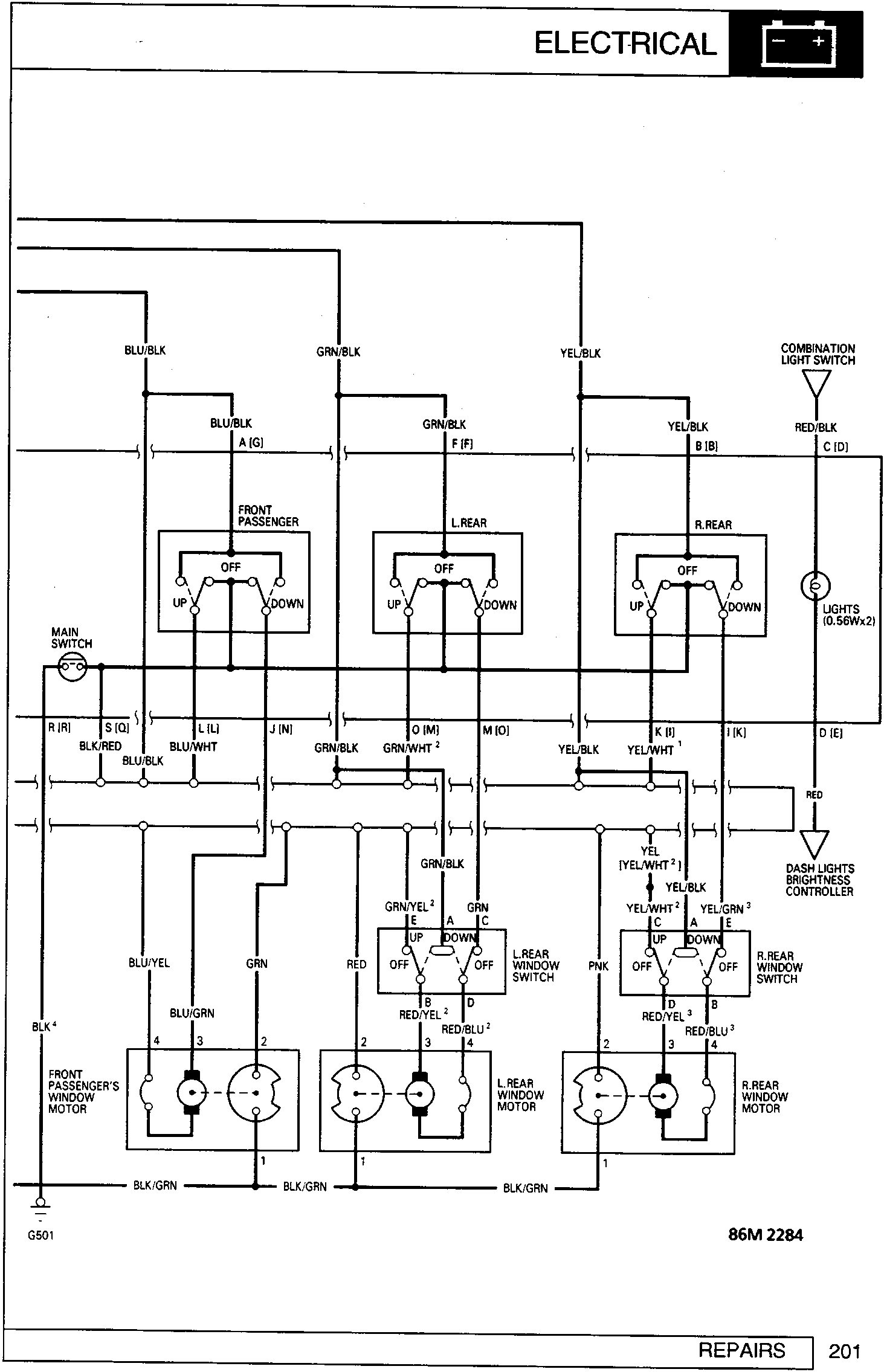

Electrical wiring diagram showing connections for front passenger, left rear, and right rear window switches and motors, including combination light switch and dash lights brightness controller.
  1. FRONT PASSENGER'S WINDOW MOTOR
  2. L.REAR WINDOW MOTOR
  3. R.REAR WINDOW MOTOR
