Repairs › Clutch Switch Test
ElectricalClutch Switch Test

Clutch Switch Test

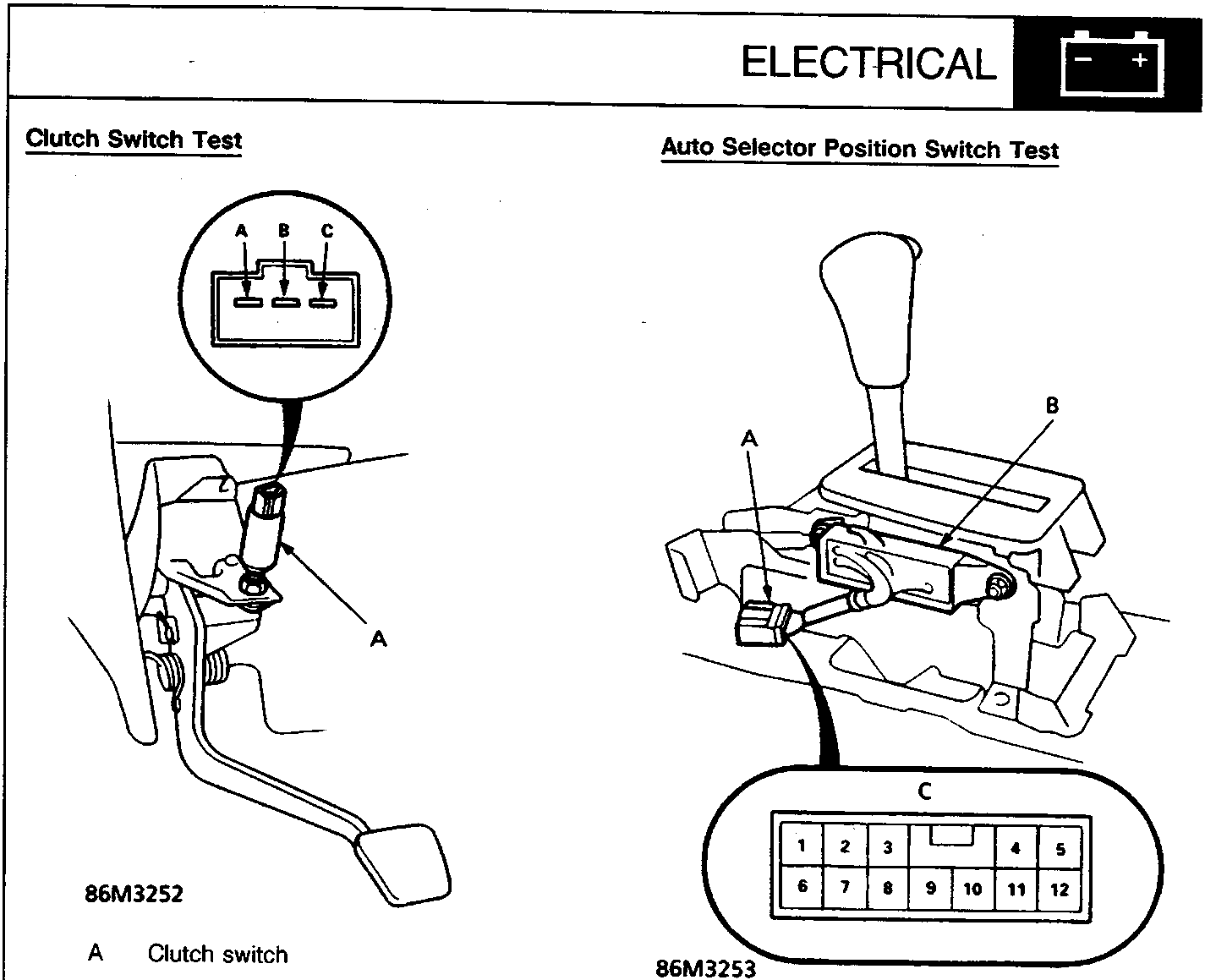

Diagram of clutch switch assembly with callout A and a circular inset showing the 3-P connector terminals labeled A, B, and C.

86M3252
A Clutch switch

  1. Disconnect the 3 – P connector from the clutch switch.
Terminal PositionBC
PRESSED
RELEASED●●
  1. Check for continuity between terminals according to table.
  2. If necessary, adjust clutch pedal height or replace switch.

Auto Selector Position Switch Test

Diagram of auto selector position switch assembly with callouts A (switch), B (connector), and C (connector view from wire side).

86M3253
A 12 – P connector
B Auto selector position switch
C Connector view from wire side

  1. Remove console then disconnect 12 – P connector from switch.
Terminal Position58
2●●
D3●●
D4●●
  1. Check for continuity between terminals in each switch position shown in table. No continuity in remaining positions.
  2. If necessary, replace switch.
