Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Wiper/washers (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalWiper/washers · page 2 of 3

Wiper/washers (page 2 of 3) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

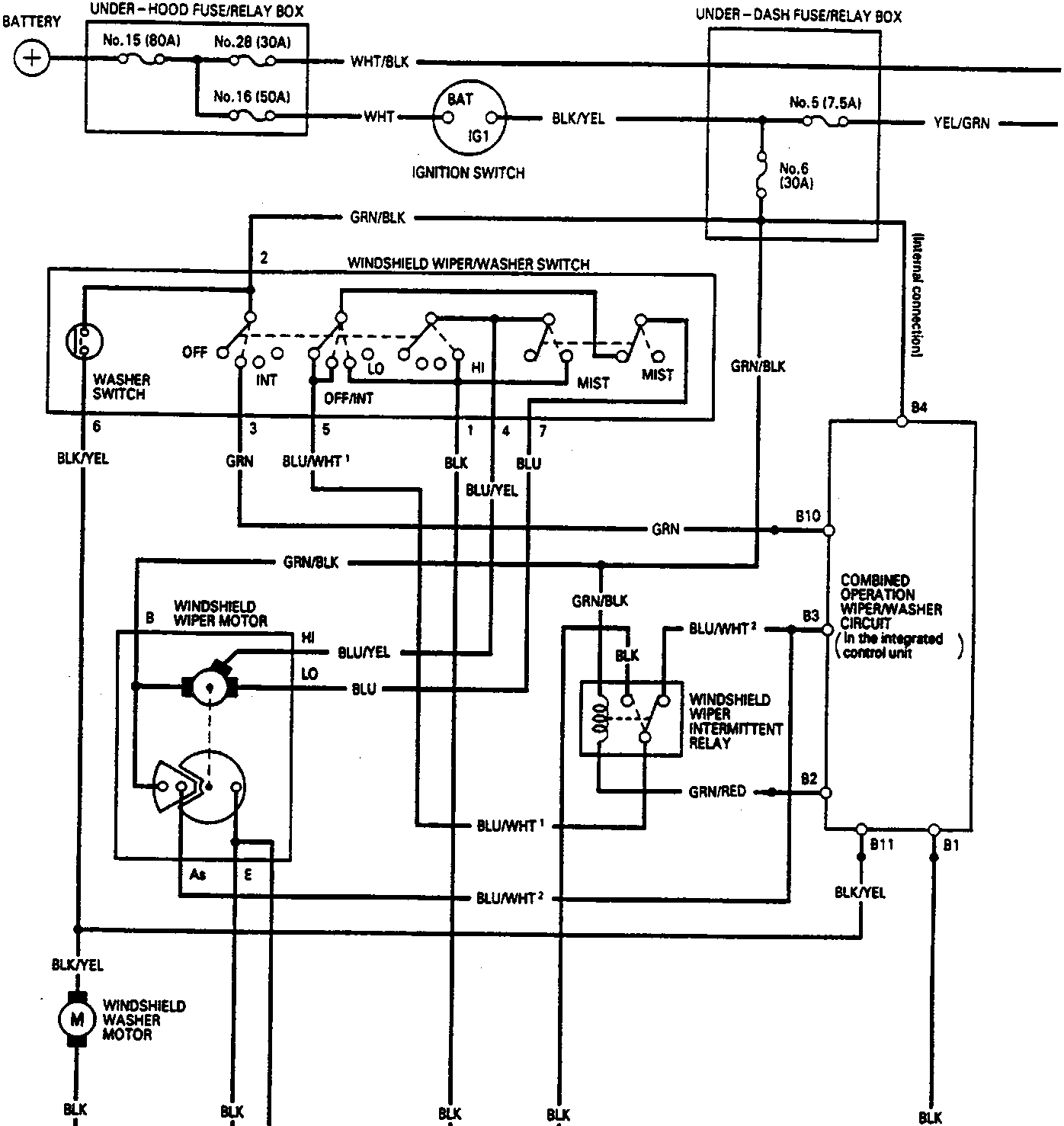

Electrical circuit diagram for the windshield wiper/washer system, showing connections between the battery, fuse/relay boxes, ignition switch, wiper/washer switch, wiper motor, washer motor, intermittent relay, and combined operation circuit. Includes wire color codes and ground points G301, G402, G203.

LHD: G301
RHD: G203

G402

G203

LHD: G402
RHD: G401
